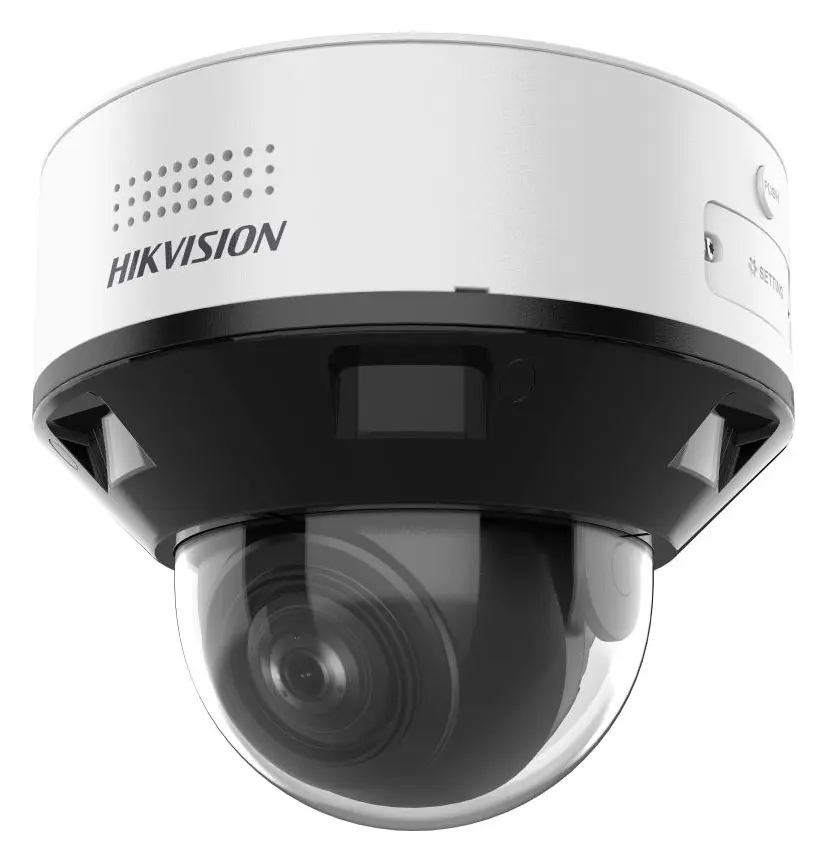

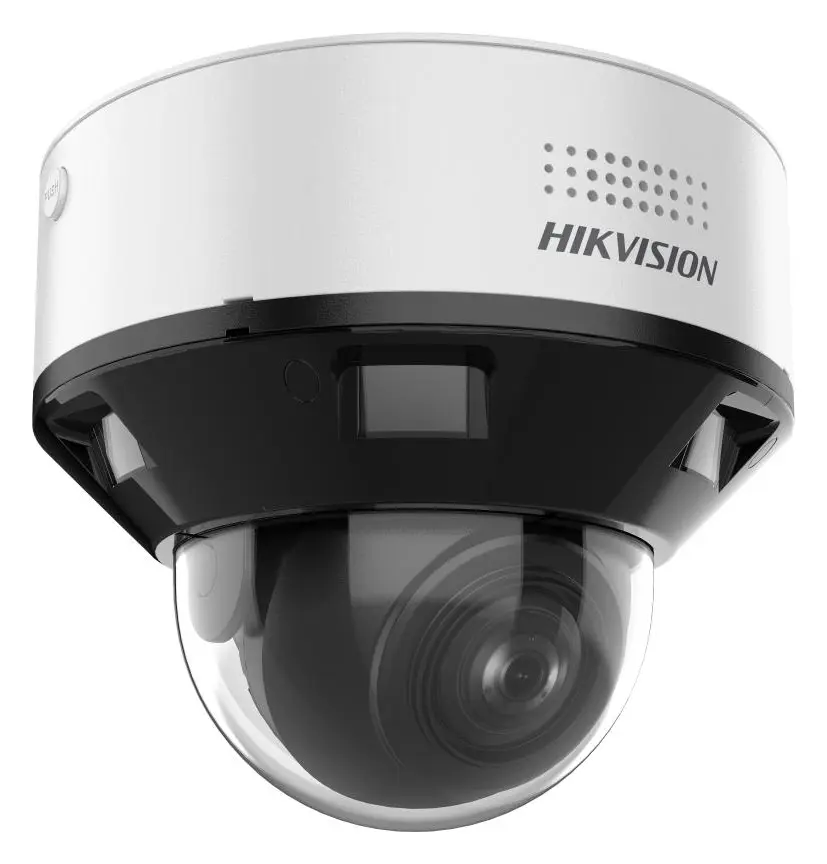

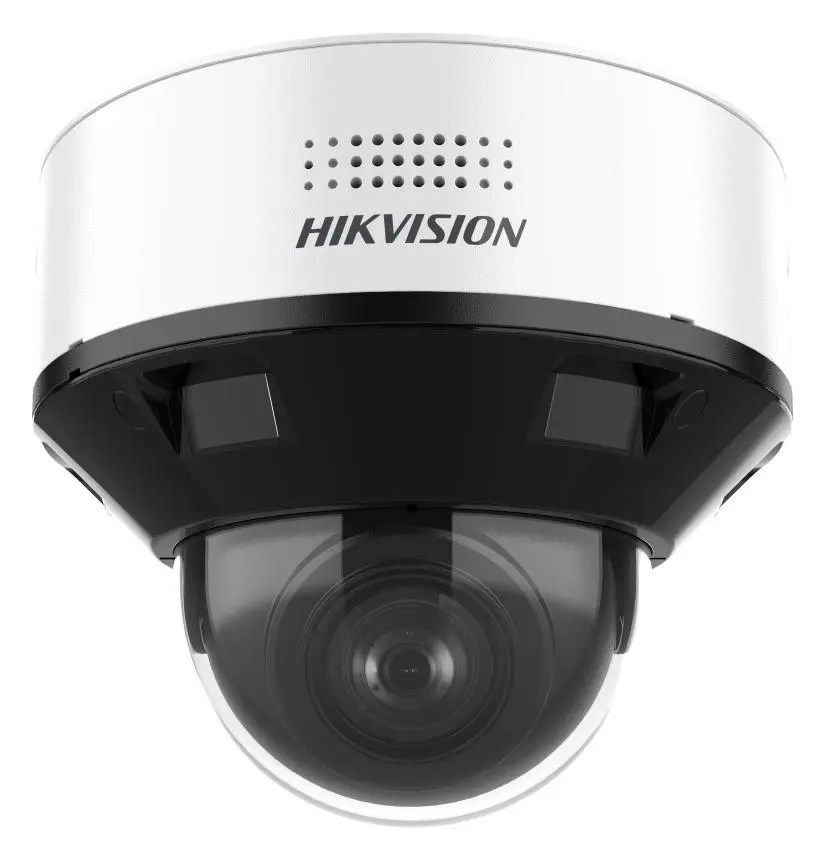

Hikvision IDS-2CD7547G2/P-XZHS 4 MP DeepinView DarkFighter Plaka Tanıma Kamerası

ModelIDS-2CD7547G2/P-XZHS

Hikvision IDS-2CD7547G2/P-XZHS, 4 MP çözünürlüklü, 2.8–12 mm motorize lensli bir plaka tanıma kamerasıdır. Kızılötesi aydınlatmayla karanlıkta 40 metreye kadar görüş sağlar. DeepinView teknolojisiyle insan ve araç hareketlerini ayırt ederek yanlış alarmları azaltır. IP67 su ve toz koruması ve IK10 darbe dayanımı ile dış ortam kurulumlarına uygundur. Dahili mikrofonuyla sesli kayıt yapabilir.

Çözünürlük: 4 MP
Gece görüşü: IR (siyah-beyaz)
Koruma sınıfı: IP67
Lens: Motorize
Teknoloji: DeepinView, DarkFighter

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High quality imaging with 4 MP resolution
Excellent low-light performance via Darkfighter 2.0 technology
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 150 dB true WDR technology
5 streams to meet a wide variety of applications
Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
High frame rate, up to 4MP@60fps and 2MP@120fps
Built-in G-sensor for vibration detection

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Kamera 6 satır

Görüntü Sensörü	1/1.8" Progressive Scan CMOS
Maks. Çözünürlük	2688 × 1520
Min. Aydınlatma	Color: 0.0003 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Enstantane Süresi	1 s to 1/100,000 s
Gece/Gündüz	IR cut filter; Blue glass module (less ghost phenomenon)
Açı Ayarı	Pan: 0° to 355°, tilt: 0° to 85°, rotate: 0° to 355°

Lens 4 satır

Odak Uzaklığı ve Görüş Açısı	2.8 to 12 mm, horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1°
Odak	Auto, Semi-auto, Manual
İris Tipi	P-iris
Diyafram	F1.0 to F1.2

Piksel Yoğunluğu (DORI) 1 satır

OODPCVS	Wide: Overview: 79.3 m, Outline: 39.7 m, Discern: 19.8 m, Perceive: 12.7 m, Characterize: 6.3 m, Validate: 3.2 m, Scrutinize: 1.1 m; Tele: Overview: 175.9 m, Outline: 87.9 m, Discern: 44.0 m, Perceive: 28.1 m, Characterize: 14.1 m, Validate: 7.0 m, Scrutinize: 2.3 m; The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintain

OODPCVS

Wide: Overview: 79.3 m, Outline: 39.7 m, Discern: 19.8 m, Perceive: 12.7 m, Characterize: 6.3 m, Validate: 3.2 m, Scrutinize: 1.1 m; Tele: Overview: 175.9 m, Outline: 87.9 m, Discern: 44.0 m, Perceive: 28.1 m, Characterize: 14.1 m, Validate: 7.0 m, Scrutinize: 2.3 m; The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintain

Aydınlatma 4 satır

IR Dalga Boyu	850 nm
Akıllı Aydınlatma	Evet
Aydınlatma Mesafesi	2.8 to 12 mm: up to 40 m
Aydınlatma Tipi	IR, White Light

HEOP (Açık Platform) 5 satır

Açık Kaynaklar	Memory: 150 MB; Smart RAM: 2200 MB; eMMC: 1288 MB
İşlem Gücü	2.5 TOPS
Açık Platform Yeteneği	HEOP 2.0 OpendevSDK
Derin Öğrenme Yapısı	Caffe, PyTorch, TensorFlow
Programlama Dili	C, C++

Video 14 satır

Ana Akış	Monitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 100 fps (1920 × 1080); 60 Hz: up to 60 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 120 fps (1920 × 1080); *High frame rate is supported under monitoring mode only.; smart mode: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Alt Akış	50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Üçüncü Akış	50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Dördüncü Akış	50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Beşinci Akış	50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Video Sıkıştırma	Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; Fourth stream: H.265/H.264/MJPEG; Fifth stream: H.265/H.264/MJPEG
Video Bit Hızı	32 Kbps to 8 Mbps
H.264 Tipi	Baseline Profile, Main Profile, High Profile
H.265 Tipi	Main Profile
Bit Hızı Kontrolü	CBR, VBR
Ölçeklenebilir Video Kodlama (SVC)	H.264 and H.265 encoding
İlgi Bölgesi (ROI)	4 fixed regions for each stream
Hedef Kırpma	Evet
Guanlan AI Kodlama	Evet

Ses 5 satır

Ses Bit Hızı	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Ses Sıkıştırma	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Ses Örnekleme Hızı	8 kHz/16 kHz/32 kHz/48 kHz
Ses Tipi	Mono sound
Ortam Gürültüsü Filtreleme	Evet

Ağ 9 satır

Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets, MQTT/MQTTS, RTMP. Support X.509 authentication, Support802.1xEAP-GTC and MSCHAP V2; 802.1xEAP 1.2 supports a maximum 32-bit key.
Eşzamanlı Canlı İzleme	Up to 20 channels
API	ONVIF (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP, OTAP
Kullanıcı/Host	Up to 32 users; 3 user levels: administrator, operator, and user
Güvenlik	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Akıcı Yayın (Smooth Streaming)	Evet
Ağ Depolama	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Cloud Storage
İstemci	iVMS-4200, Hik-Connect, Hik-Central
Web Tarayıcı	Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Görüntü 9 satır

Görüntü Parametresi Geçişi	Evet
Görüntü Ayarları	Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
Gece/Gündüz Geçişi	Day, Night, Auto, Schedule, Alarm Trigger
Geniş Dinamik Aralık (WDR)	150 dB
Mahremiyet Maskesi	8 programmable polygon privacy masks
S/N Oranı	≥ 52 dB
Görüntü İyileştirme	BLC, HLC,3D DNR, Distortion Correction, Defog
Görüntü Sabitleme	EIS
Görüntü Bindirme	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Arayüz 11 satır

Video Çıkışı	1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Arayüzü	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Dahili Depolama	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Ses	1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Dahili Mikrofon	Yes, 2 built-in microphones
Alarm	With -Y: 2 inputs, 2 outputs (max. 24 VDC, 1 A); Without -Y: 1 input, 1 output (max. 24 VDC, 1 A)
Dahili Hoparlör	Yes, 1 built-in speaker
RS-485	With -Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive); Without -Y: No
Reset Tuşu	Evet
Güç Çıkışı	12 VDC, max. 100 mA
Wiegand	1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)

Olay 3 satır

Temel Olaylar	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), glass break detection, scream detection, gunshot and explosion sound detection, crying sound detection
Akıllı Olaylar	Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Bağlantı (Linkage)	Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, trigger alarm output, send email, audible warning, HTTP custom alarm

Derin Öğrenme Fonksiyonları 7 satır

Çevre Koruma	Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle); Support combined event alarm triggering
Metadata	Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic
Yol Trafiği ve Araç Algılama	Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario); Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.; Support vehicle and non-vehicle counting; Blocklist and allowlist: up to 50,000 records; LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions; Accuracy (Under recommended installation and lighting conditions): License plate recogniti
Otopark Yönetimi	Support distant view mode and close view mode; Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm; Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm
AcuSeek	Support searching for humans, license plates, vehicles, non-motorized vehicles, and animals and uploading the feature information. This function requires use with AcuSeek NVR/Servers.
Araç Olay Algılama	Supports Parking Detection and Congestion Detection.; Supports Vehicle Statistics to count the number of vehicles staying within the detection area.; Suppots real-time upload data, and OSD overlay.
Genel	Supports scheduled-switch of smart applications.; Supports enabling 2 smart applications at the same time.

Genel 13 satır

Güç	12 VDC ± 20%, 1.58 A, max. 18.9 W, three-core terminal block; 24 VAC ± 20%, 1.19 A, max. 18.2W, three-core terminal block; PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.4 A to 0.49 A, max. 20.5 W
Malzeme	Aluminum alloy body
Boyutlar	Ø182.7 mm × 150 mm (Ø7.2" × 5.9")
Paket Boyutları	250 mm × 250 mm × 260 mm (9.9" × 9.9" × 10.2")
Ağırlık	With -Y: Approx. 1900 g (4.19 lb.); Without -Y: Approx. 2170 g (4.78 Ib.)
Paketli Ağırlık	With -Y: Approx. 2470 g (5.45 lb.); Without -Y: Approx. 2600 g (5.73 lb.)
Başlangıç ve Çalışma Koşulları	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Depolama Koşulları	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Dil	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Genel Fonksiyonlar	Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log
Isıtıcı	Evet
Cihaz Yönetimi	Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces. Supports adding network microphone and speaker.
Entegre Konnektör Paneli	With -Y: No, Without -Y: Yes

Onaylar 7 satır

EMC	CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50130-4:2011+A1:2014; RCM: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50130-4:2011+A1:2014; IC: ICES-003 Issue7:October 2020
Güvenlik	CB: IEC 62368-1: 2014; CE-LVD: EN 62368-1: 2014 + A11: 2017; LOA: IEC/EN 60950-1
Çevre	CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Koruma	IP67: IEC 60529-2013, IK10: IEC 62262:2002
Korozyon Koruması	-Y: NEMA 4X (ANSI/NEMA 250-2020)
Diğer	PVC FREE
Siber Güvenlik	IEC62443-4-1 ML2; EUCC; CC: EAL3

Genel bakış

Hikvision IDS-2CD7547G2/P-XZHS kullanım alanları ve özellikleri.

Hikvision IDS-2CD7547G2/P-XZHS, 4 MP çözünürlük, 2.8–12 mm varifocal lens, 40 m gece görüş mesafesi ve IP67/IK10 koruma sunan bir Plaka Tanıma Kamerası modelidir. DeepinView serisi gelişmiş derin öğrenme analizleri sunar.

4MP DarkfighterS DeepinView PTRZ ANPR Dome Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via Darkfighter 2.0 technology
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 150 dB true WDR technology
5 streams to meet a wide variety of applications
Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
High frame rate, up to 4MP@60fps and 2MP@120fps
Built-in G-sensor for vibration detection
Built-in power meter for historical power statistics
License plate recognition and vehicle attribution recognition
Unique PTRZ capability for efficient installation and maintenance

Nerelerde kullanılır?

Site, otopark ve tesis girişlerinde plaka okuma, beyaz liste ile bariyer açma ve araç giriş-çıkış raporlaması için kullanılır.

Kurulum ve uyumluluk

IDS-2CD7547G2/P-XZHS PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Tüm özellikler

High quality imaging with 4 MP resolution
Excellent low-light performance via Darkfighter 2.0 technology
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 150 dB true WDR technology
5 streams to meet a wide variety of applications
Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
High frame rate, up to 4MP@60fps and 2MP@120fps
Built-in G-sensor for vibration detection
Built-in power meter for historical power statistics
License plate recognition and vehicle attribution recognition
Unique PTRZ capability for efficient installation and maintenance

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · IDS-2CD7547G2/P-XZHS Hızlı Başlangıç KılavuzuPDF · IDS-2CD7547G2/P-XZHS Kullanım KılavuzuPDF · IDS-2CD7547G2/P-XZHS SSS (FAQ)PDF · IDS-2CD7547G2/P-XZHS

Sık sorulanlar

IDS-2CD7547G2/P-XZHS hakkında kısa yanıtlar.

IDS-2CD7547G2/P-XZHS gece görüş mesafesi kaç metre?

IDS-2CD7547G2/P-XZHS, IR aydınlatmayla yaklaşık 40 metreye kadar gece görüşü sağlar. Gerçek mesafe ortam ışığına ve yansıtıcı yüzeylere göre değişebilir.

IDS-2CD7547G2/P-XZHS dış ortamda kullanılabilir mi?

Evet. IP67 koruma sınıfı sayesinde yağmur ve toza karşı dayanıklıdır; IK10 gövdesi darbelere karşı da korumalıdır.

IDS-2CD7547G2/P-XZHS hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Hikvision NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

IDS-2CD7547G2/P-XZHS kaç megapiksel?

IDS-2CD7547G2/P-XZHS 4 MP çözünürlüğe sahiptir ve 2.8–12 mm lens kullanır.
