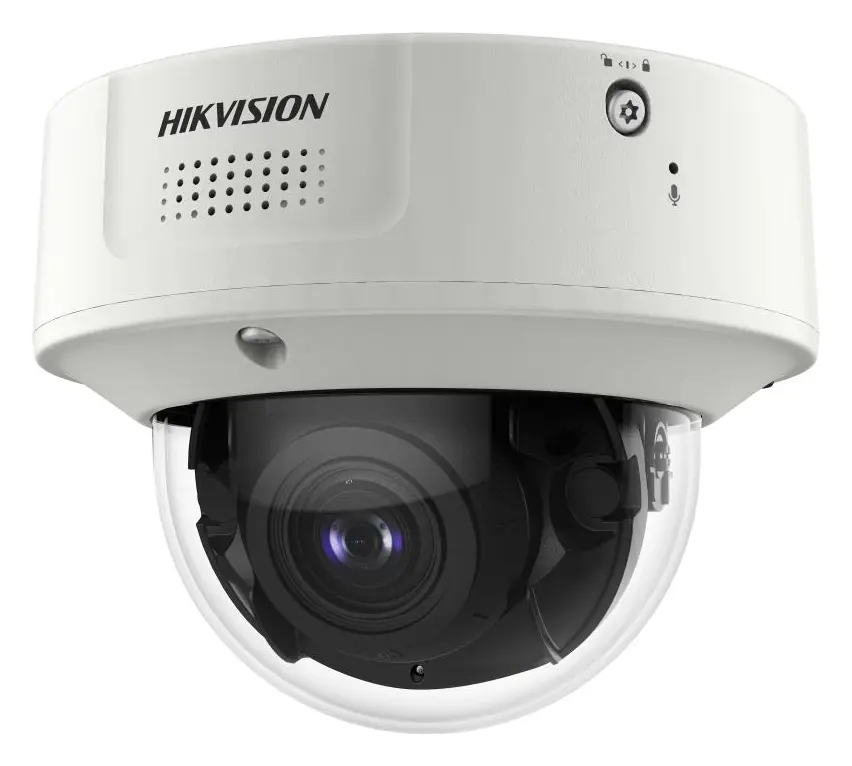

Hikvision IDS-2CD7146G0-IZHSY 4 MP DeepinView Varifocal IP Dome Kamera — görsel 3

1 / 3

IP Dome Kamera DeepinView

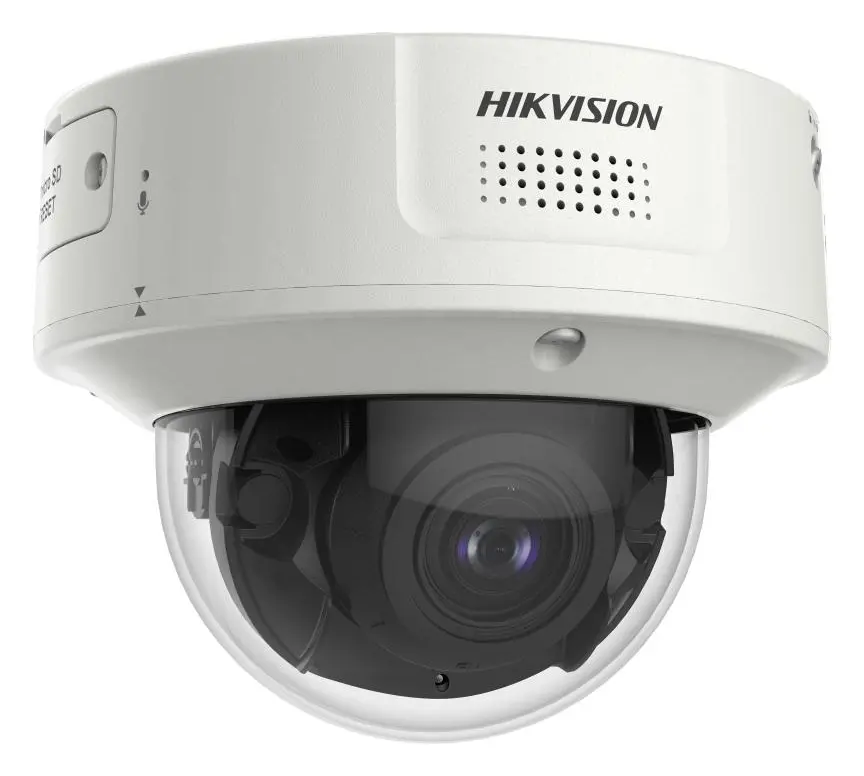

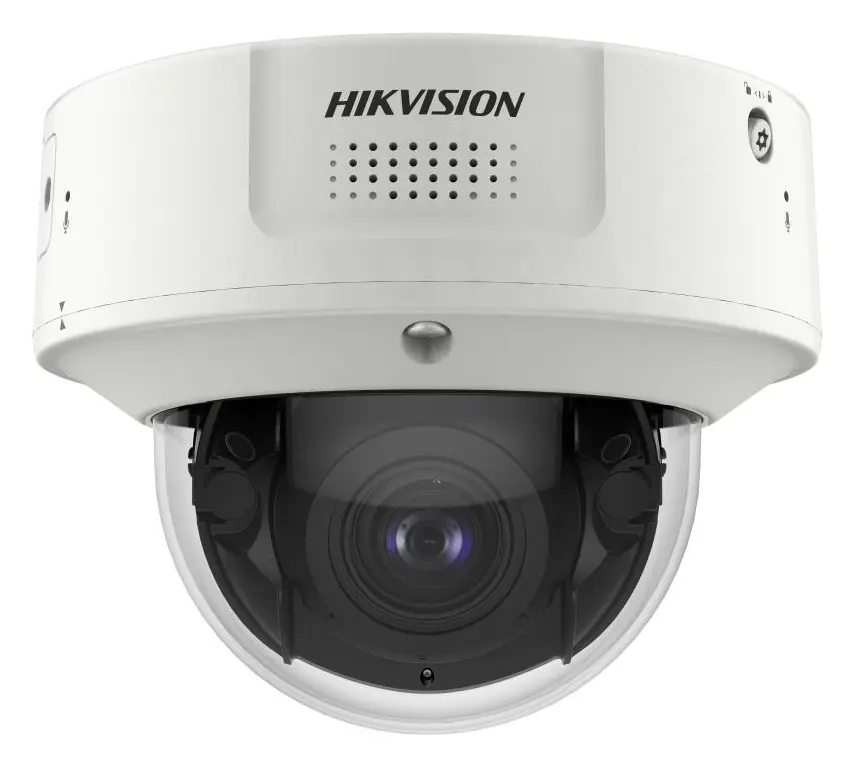

Hikvision IDS-2CD7146G0-IZHSY 4 MP DeepinView Varifocal IP Dome Kamera

ModelIDS-2CD7146G0-IZHSY

Hikvision IDS-2CD7146G0-IZHSY, 4 MP çözünürlüklü, 2.8–12 mm değişken odaklı lensli bir IP dome kameradır. Kızılötesi aydınlatmayla karanlıkta 40 metreye kadar görüş sağlar. DeepinView teknolojisiyle insan ve araç hareketlerini ayırt ederek yanlış alarmları azaltır. IP67 su ve toz koruması ve IK10 darbe dayanımı ile dış ortam kurulumlarına uygundur. Dahili mikrofonuyla sesli kayıt yapabilir.

Sinyal tipi: IP
Çözünürlük: 4 MP
Gece görüşü: IR (siyah-beyaz)
Koruma sınıfı: IP67
Lens: Varifocal
Teknoloji: DeepinView, DarkFighter

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Kamera 6 satır

Görüntü Sensörü	1/1.8" Progressive Scan CMOS
Maks. Çözünürlük	2688 × 1520
Min. Aydınlatma	Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR
Enstantane Süresi	1 s to 1/100,000 s
Gece/Gündüz	IR cut filter
Açı Ayarı	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens 4 satır

Odak Uzaklığı ve Görüş Açısı	2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7°; 8 to 32 mm, horizontal FOV 42.5° to 14°, vertical FOV 23.4° to 8°, diagonal FOV 49.7° to 17°
Odak	Auto, Semi-auto, Manual
İris Tipi	P-iris
Diyafram	2.8 to 12 mm: F1.2 to F2.5, 8 to 32 mm: F1.7 to F1.73

Piksel Yoğunluğu (DORI) 1 satır

DORI	Wide: 2.8 to 12 mm: D (Detect): 61.5 m, O (Observe): 24.4 m, R (Recognize): 12.3 m, I (Identify): 6.2 m; 8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15.0 m; Tele: 2.8 to 12 mm: D (Detect): 151.7 m, O (Observe): 60.2 m, R (Recognize): 30.3 m, I (Identify): 15.1 m; 8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80.0 m, I (Identify): 40.0 m

DORI

Wide: 2.8 to 12 mm: D (Detect): 61.5 m, O (Observe): 24.4 m, R (Recognize): 12.3 m, I (Identify): 6.2 m; 8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15.0 m; Tele: 2.8 to 12 mm: D (Detect): 151.7 m, O (Observe): 60.2 m, R (Recognize): 30.3 m, I (Identify): 15.1 m; 8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80.0 m, I (Identify): 40.0 m

Aydınlatma 4 satır

Aydınlatma Tipi	IR
Aydınlatma Mesafesi	2.8 to 12 mm: Monitoring: 40 m; 8 to 32 mm: Monitoring: 60 m
Akıllı Aydınlatma	Evet
IR Dalga Boyu	850 nm

AI Açık Platform 1 satır

Model Özellikleri	Up to 4 models; Model type: detection model, classification model, mixed model (detection model and classification model)

Video 14 satır

Ana Akış	50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Alt Akış	50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Üçüncü Akış	50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Dördüncü Akış	50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Beşinci Akış	50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Video Sıkıştırma	Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; Fourth stream: H.265/H.264/MJPEG; Fifth stream: H.265/H.264/MJPEG
Video Bit Hızı	32 Kbps to 8 Mbps
H.264 Tipi	Baseline Profile, Main Profile, High Profile
H.265 Tipi	Main Profile
Bit Hızı Kontrolü	CBR, VBR
Ölçeklenebilir Video Kodlama (SVC)	H.264 and H.265 encoding
İlgi Bölgesi (ROI)	4 fixed regions for each stream
Hedef Kırpma	Evet
e-PTZ	Support Patrol and Auto Tracking settings

Ses 5 satır

Ses Tipi	Mono sound
Ses Sıkıştırma	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Ses Bit Hızı	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Ses Örnekleme Hızı	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Ortam Gürültüsü Filtreleme	Evet

Ağ 8 satır

Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Eşzamanlı Canlı İzleme	Up to 20 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP
Kullanıcı/Host	Up to 32 users; 3 user levels: administrator, operator, and user
Güvenlik	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
İstemci	iVMS-4200, Hik-Connect, Hik-Central
Ağ Depolama	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Web Tarayıcı	Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Görüntü 8 satır

Görüntü Parametresi Geçişi	Evet
Görüntü Ayarları	Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
Gece/Gündüz Geçişi	Day, Night, Auto, Schedule, Alarm Trigger
Geniş Dinamik Aralık (WDR)	140 dB
Görüntü İyileştirme	BLC, HLC,3D DNR, Distortion Correction, Defog
Mahremiyet Maskesi	8 programmable polygon privacy masks
Görüntü Bindirme	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Görüntü Sabitleme	EIS

Arayüz 10 satır

Video Çıkışı	1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Arayüzü	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Dahili Depolama	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Dahili Mikrofon	Yes, 2 built-in microphones
Dahili Hoparlör	Max. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m
Ses	1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Alarm	2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
RS-485	1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Tuşu	Evet
Güç Çıkışı	12 VDC, max. 100 mA

Olay 3 satır

Temel Olaylar	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, video quality diagnosis, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), vibration detection
Akıllı Olaylar	scene change detection, audio exception detection, defocus detection
Bağlantı (Linkage)	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning

Derin Öğrenme Fonksiyonları 11 satır

Çoklu Hedef Tipi Algılama	Supports simultaneous detection and capture of human body, face, and vehicle; Gets 7 face features; Gets 13 human body features; Gets 2 vehicle features; Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle; Supports dynamic mosaic mask
Yüz Yakalama	Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second; Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°; Uploads face with background and closed-up face pictures; Supports best shot and quick shot for capture mode; Supports dynamic mosaic mask; Gets 7 face features
Yüz Karşılaştırma	Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total; Supports face library encryption
Metadata	Intrusion detection, line crossing detection, region entrance detection, region exiting detection, face capture, multi-target-type detection
Çevre Koruma	Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle); Support combined event alarm triggering
Kişi Sayma	Supports Multi-Dimension People Counting; Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.); Supports real-time uploading and uploading by statistic cycle; Supports generating daily, weekly, monthly or annually reports; Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within
Kuyruk Yönetimi	Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 2 detection modes: regional people queuing-up, waiting time detection; Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue; Supports raw data export for further analysis; Supports real-time data uploading and scheduled data uploading; Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less th
Isı Haritası	A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.; Two report types are available, space heat map and time heat map line chart.
Baret Algılama	Detects up to 30 human targets simultaneously; Supports up to 4 shield regions
Bölgesel Kişi Sayma	Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection; Supports parameter settings: alarm times per exception, alarm interval, first alarm delay; Supports searching real-time number of people; People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading; Number of people exception de
Görev Başında/Dışında Algılama	Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 2 detection modes: absence detection, on/off duty detection; Supports parameter settings: person on duty, absence duration

Genel 12 satır

Güç	12 VDC ± 25%, 0.97 A, max. 11.43 W, three-core terminal block, reverse polarity protection; 24 VAC +24.9%/-25%, 0.73 A, max. 10.67 W; PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.19 A to 0.28 A, max. 11.92 W
Malzeme	Base: metal, cover: metal
Boyutlar	Ø144.3 mm × 114.1 mm (Ø5.7" × 4.5")
Paket Boyutları	244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
Ağırlık	Approx. 990 g (2.0 lb.)
Paketli Ağırlık	Approx. 1425 g (3.1 lb.)
Depolama Koşulları	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Başlangıç ve Çalışma Koşulları	With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing); Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dil	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Genel Fonksiyonlar	Heartbeat, one-key reset, mirror, password protection
Kablo Uzunluğu	0.25 m (0.8 ft.)
Cihaz Yönetimi	Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

Onaylar 7 satır

EMC	FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, EN50121-4; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
Güvenlik	UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005; LOA: IEC/EN 60950-1
Çevre	CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Koruma	IP67: IEC 60529-2013;IK10: IEC 62262:2002
Korozyon Koruması	-Y: NEMA 4X (NEMA 250-2018)
CC	Common Criteria, Assurance Level: EAL2 + ALC_FLR.2
Diğer	PVC FREE

Genel bakış

Hikvision IDS-2CD7146G0-IZHSY kullanım alanları ve özellikleri.

Hikvision IDS-2CD7146G0-IZHSY, 4 MP çözünürlük, 2.8–12 mm varifocal lens, 40 m gece görüş mesafesi ve IP67/IK10 koruma sunan bir IP Dome Kamera modelidir. DeepinView serisi gelişmiş derin öğrenme analizleri sunar.

4MP DeepinView Moto Varifocal Dome Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)

Nerelerde kullanılır?

Mağaza, ofis, koridor, asansör ve kasa önü gibi iç mekânlarda estetik ve vandal dayanımlı izleme için kullanılır.

Kurulum ve uyumluluk

IDS-2CD7146G0-IZHSY PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · IDS-2CD7146G0-IZHSY Hızlı Başlangıç KılavuzuPDF · IDS-2CD7146G0-IZHSY Kullanım KılavuzuPDF · IDS-2CD7146G0-IZHSY Firmware (V5.10.0_260728) - indirme sayfasıPDF · IDS-2CD7146G0-IZHSY

Sık sorulanlar

IDS-2CD7146G0-IZHSY hakkında kısa yanıtlar.

IDS-2CD7146G0-IZHSY gece görüş mesafesi kaç metre?

IDS-2CD7146G0-IZHSY, IR aydınlatmayla yaklaşık 40 metreye kadar gece görüşü sağlar. Gerçek mesafe ortam ışığına ve yansıtıcı yüzeylere göre değişebilir.

IDS-2CD7146G0-IZHSY dış ortamda kullanılabilir mi?

Evet. IP67 koruma sınıfı sayesinde yağmur ve toza karşı dayanıklıdır; IK10 gövdesi darbelere karşı da korumalıdır.

IDS-2CD7146G0-IZHSY hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Hikvision NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

IDS-2CD7146G0-IZHSY kaç megapiksel?

IDS-2CD7146G0-IZHSY 4 MP çözünürlüğe sahiptir ve 2.8–12 mm lens kullanır.

IDS-2CD7146G0-IZHSY fiyatı ne kadar?

IDS-2CD7146G0-IZHSY için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
