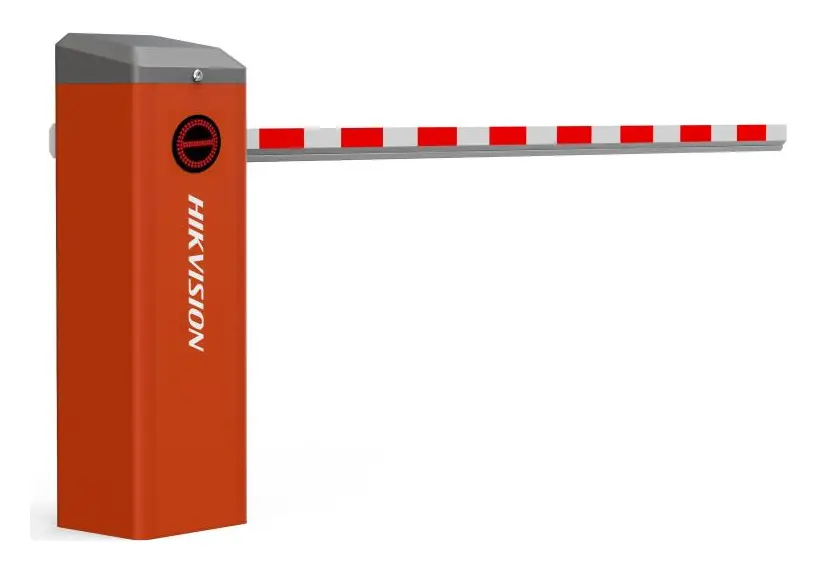

Hikvision DS-TMG520/B Otopark Bariyeri
Model
DS-TMG520/BHikvision DS-TMG520/B otopark bariyeri: DC frequency conversion. The rising and falling speeds can be adjusted independently. The boom pole can rise in high speed to let the vehicle pass quickly., The boom pole can fall in low speed to avoid hitting vehicle and pedestrian., High protection level. Th.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- DC frequency conversion. The rising and falling speeds can be adjusted independently. The boom pole can rise in high speed to let the vehicle pass quickly.
- The boom pole can fall in low speed to avoid hitting vehicle and pedestrian.
- High protection level. The chassis is produced with 2 mm cold rolled steel sheets in numerically-controlled precision. The surface is coated with plastic powder which is anti-UV, antistatic, non-peeling, and non-fading.
- Multiple control modes. Rising priority. The boom pole can be controlled via relay, remote controller, and software command.
- Multiple anti-hitting modes via induction, IR, pressure wave, etc.
- The boom pole direction is adjustable from left to right, or from right to left.
- Anti-condensation. The electric motor is in low consumption even when the barrier gate is not in working status, which will keep the motor in normal temperature. So even in cold weather, the lube will not be frozen to gu
- Auto lock. Even when the power is cut off, you can use tool to keep the barrier gate working.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Barrier Housing 6 satır
| Barrier Housing Material | SGCC |
|---|---|
| Barrier Housing Thickness | 1.5 mm |
| Barrier Housing Door Thickness | 1.2 mm |
| Barrier Housing Color | Orange red |
| Boom Pole Installation Height | 880 mm |
| Body Indicators | Arrow Indictor |
Bariyer Genel 12 satır
| Matched Boom Pole Type | Cylinder boom pole: 1 to 4 m; anti-collision Octagonal straight boom pole: 1 to 6 m; Octagonal telescopic boom pole: 4 to 6 m; Boom pole ≥ 5 m: with spindle rod |
|---|---|
| Boom Pole Direction | right by default, direction switchable |
| Boom Pole Falling Delay | 10 s by default (configurable), min. 10 s (every 10 s followed a gap) |
| Motor Type | DC brushless motor |
| Number of Cycles | 5000000 |
| Çalışma Gerilimi | 220 VAC |
| Remote Controller Frequency | 433 MHz |
| Akım | Max. 4 A |
| Tüketim | 300 W |
| Temperature and Humidity | Temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Rising Boom Pole for Poweroff | Optional, not supported by default |
| 道闸高度 | DS-TMG520-H/B(3m): Raising: 0.9S(Default) Adjustable 0.9S, 1.2S, 2S; Falling: 3S(Default) Adjustable 1.5S, 2S, 3S; DS-TMG520-M/B(4m): Raising: 1.5S(Default) Adjustable 1.5S, 2S, 2.5S; Falling: 3.5S(Default) Adjustable 2.5S, 3S, 3.5S; DS-TMG520-L/B(6m): Raising: 4S(Default) Adjustable 4S, 5S, 6S; Falling: 6S(Default) Adjustable 4S, 5S, 6S; DS-TMG520-M/B(4m telescopic pole): Raising: 2S(Default) Adjustable 2S, 2.5S; Falling: 3.5S(Default) Adjustable 2.5S, 3S, 3.5S; DS-TMG520-L/B(5m telescopic pole |
Barrier Gate 1 satır
| Duty Cycle | 100% |
|---|
Arayüz 10 satır
| Rising to Limit | 1 group |
|---|---|
| Falling to Limit | 1 group |
| Open | 1 group |
| Close | 1 group |
| Stop | 1 group |
| IR/Inductive Loop/Radar | 1 group |
| RS-485 | 1 group |
| Traffic Signal Light | 1 group, external power supply required, max. 220 VAC supported |
| LED Indicators | 1 group |
| Ağ | 1 group (reserved) |
Boom Pole 7 satır
| Boom Pole Type | Octagonal Straight Pole |
|---|---|
| Boom Pole Material | AL6061 |
| Boom Pole Color | White background with red bar |
| Boom Pole Dimensions | 2 m octagonal straight boom pole: 98 × 45 × 2000 mm (3.86 × 1.77 × 78.74 inch); 3 m octagonal straight boom pole: 98 × 45 × 3000 mm (3.86 × 1.77 × 118.11 inch); 4 m octagonal straight boom pole: 98 × 45 × 4000 mm (3.86 × 1.77 × 157.48 inch); 5 m octagonal straight boom pole: 119 × 55 × 5000 mm (4.69 × 2.17 × 196.85 inch); 6 m octagonal straight boom pole: 119 × 55 × 6000 mm (4.69 × 2.17 × 236.22 inch); 3 m boom pole with LED strip light: 95 × 49 × 3013 mm (3.74 × 1.93 × 118.62 inch); 4 m boom po |
| Boom Pole Weight | 2 m octagonal straight boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.); 3 m octagonal straight boom pole: 2.8 ± 0.3 kg (6.17 ± 0.66 lb.); 4 m octagonal straight boom pole: 3.45 ± 0.3 kg (7.60 ± 0.66 lb.); 5 m octagonal straight boom pole: 5.9 ± 0.3 kg (13.00 ± 0.66 lb.); 6 m octagonal straight boom pole: 6.8 ± 0.3 kg (15.21 ± 0.66 lb.); 3 m boom pole with LED strip light: 3.4 ± 0.3 kg (7.50 ± 0.66 lb.); 4 m boom pole with LED strip light: 4.4 ± 0.3 kg (9.70 ± 0.66 lb.); 4 m octagonal telescopic boom p |
| Boom Pole Dimensions (with Package) | 2 m octagonal straight boom pole: 115 × 60 × 2020 mm (4.53 × 2.36 × 79.53 inch); 3 m octagonal straight boom pole: 115 × 60 × 3020 mm (4.53 × 2.36 × 118.90 inch); 4 m octagonal straight boom pole: 115 × 60 × 4020 mm (4.53 × 2.36 × 158.27 inch); 5 m octagonal straight boom pole: 140 × 65 × 5030 mm (5.51 × 2.56 × 198.03 inch); 6 m octagonal straight boom pole: 140 × 65 × 6030 mm (5.51 × 2.56 × 237.40 inch); 3 m boom pole with LED strip light: 100 × 60 × 3035 mm (3.94 × 2.36 × 120.07 inch); 4 m boo |
| Boom Pole Weight (with Package) | 2 m octagonal straight boom pole: 2.37 ± 0.3 kg (5.22 ± 0.66 lb.); 3 m octagonal straight boom pole: 3.11 ± 0.3 kg (6.86 ± 0.66 lb.); 4 m octagonal straight boom pole: 3.965 ± 0.3 kg (8.74 ± 0.66 lb.); 5 m octagonal straight boom pole: 7.01 ± 0.3 kg (15.45 ± 0.66 lb.); 6 m octagonal straight boom pole: 8.245 ± 0.3 kg (18.18 ± 0.66 lb.); 3 m boom pole with LED strip light: 4.0 ± 0.3 kg (8.82 ± 0.66 lb.); 4 m boom pole with LED strip lioght: 5.2 ± 0.3 kg (11.46 ± 0.66 lb.); 4 m octagonal telescopi |
Onaylar 5 satır
| RF | CE-RED; EN 300220-1 V3.1.1; EN 300220-2 V3.1.1; EN 301489-1 V2.2.3; EN 301489-3 V2.1.1; EN IEC 62311: 2020 |
|---|---|
| EMC | CE-EMC: ; EN 55032: 2015 + A11: 2020 + A1: 2020; EN IEC 61000-3-2: 2019 + A1: 2021; EN 61000-3-3: 2013 + A1: 2019 + A2: 2021; EN 50130-4: 2011 + A1: 2014 |
| Güvenlik | CE-LVD: EN 62368-1: 2014 + A11: 2017; CB: IEC 62368-1: 2014; IEC 62368-1: 2018 |
| Çevre | ROHS |
| Koruma | IP54 |
Paket 3 satır
| Barrier Housing Dimensions (L × W × H) | 1130 × 349 × 299 mm (44.5 × 13.7 × 11,8 inch) |
|---|---|
| Body Weight | 59.3 ± 5 kg (130.7 ± 11.0 lb.) |
| Body Dimensions (with Package, Without Boom Pole) (L × W × H) | 1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch) |
Genel bakış
Hikvision DS-TMG520/B kullanım alanları ve özellikleri.
Hikvision DS-TMG520/B, 5 series Barrier Gates ürün ailesinden bir Otopark Bariyeri modelidir.
Barrier gates with straight boom pole and arrow indicator
- DC frequency conversion. The rising and falling speeds can be adjusted independently. The boom pole can rise in high speed to let the vehicle pass quickly.
- The boom pole can fall in low speed to avoid hitting vehicle and pedestrian.
- High protection level. The chassis is produced with 2 mm cold rolled steel sheets in numerically-controlled precision. The surface is coated with plastic powder which is anti-UV, antistatic, non-peeling, and non-fading. The dustproof and waterproof level conforms to IP54.
- Multiple control modes. Rising priority. The boom pole can be controlled via relay, remote controller, and software command.
- Multiple anti-hitting modes via induction, IR, pressure wave, etc.
- The boom pole direction is adjustable from left to right, or from right to left.
- Anti-condensation. The electric motor is in low consumption even when the barrier gate is not in working status, which will keep the motor in normal temperature. So even in cold weather, the lube will not be frozen to guarantee the normal running of barrier gate.
- Auto lock. Even when the power is cut off, you can use tool to keep the barrier gate working.
- Intergated with arrow indicator to show barrier gate status
Nerelerde kullanılır?
Site, otopark ve tesis girişlerinde araç trafiğini kontrol eder; plaka tanıma, kart okuyucu veya uzaktan kumandayla entegre çalışır.
Kurulum ve uyumluluk
Kurulum ve kullanıcı yönetimi Hik-Connect uygulaması veya web arayüzü üzerinden yapılır.
Tüm özellikler
- DC frequency conversion. The rising and falling speeds can be adjusted independently. The boom pole can rise in high speed to let the vehicle pass quickly.
- The boom pole can fall in low speed to avoid hitting vehicle and pedestrian.
- High protection level. The chassis is produced with 2 mm cold rolled steel sheets in numerically-controlled precision. The surface is coated with plastic powder which is anti-UV, antistatic, non-peeling, and non-fading.
- Multiple control modes. Rising priority. The boom pole can be controlled via relay, remote controller, and software command.
- Multiple anti-hitting modes via induction, IR, pressure wave, etc.
- The boom pole direction is adjustable from left to right, or from right to left.
- Anti-condensation. The electric motor is in low consumption even when the barrier gate is not in working status, which will keep the motor in normal temperature. So even in cold weather, the lube will not be frozen to gu
- Auto lock. Even when the power is cut off, you can use tool to keep the barrier gate working.
- Intergated with arrow indicator to show barrier gate status
