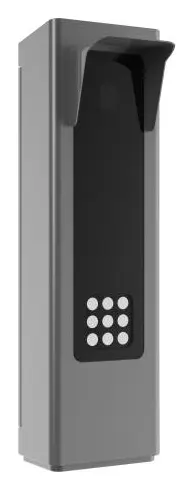

Hikvision DS-TMC403-EL Geçiş Kontrol Aksesuarı
Model
DS-TMC403-ELHikvision DS-TMC403-EL geçiş kontrol aksesuarı: Discreet monitoring enabled by low-profile presence., 1/1.8" progressive scan Global shutter CMOS., GMOS use global shutter technology guarantee superb imaging quality and high recognition rate in heavy rain or low illumination scenes., Efficient access contro.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Discreet monitoring enabled by low-profile presence.
- 1/1.8" progressive scan Global shutter CMOS.
- GMOS use global shutter technology guarantee superb imaging quality and high recognition rate in heavy rain or low illumination scenes.
- Efficient access control with adaptable recognition ranges.
- Up to 2688 × 1520 resolution with real-time video.
- Built-in 9 strobe lights，able to suppress vehicle headlights
- Built-in temperature and humidity sensor and self-heating glass prevent fogging.
- Open door alarm.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Lens 5 satır
| Lens Tipi | 4mm |
|---|---|
| Diyafram | F1.6 |
| Focal Length and FoV | 4 mm, horizontal FoV: 79°, vertical FoV: 43.3°, diagonal FoV: 92° |
| Lens Yuvası | M16 |
| lris Type | Fixed |
Ek Işık 2 satır
| Aydınlatma Tipi | IR Light |
|---|---|
| Aydınlatma Mesafesi | 850nm |
Yakalama Modu 4 satır
| Trigger Type | Video Detection, I/O Coil, Radar Mixed Traffic |
|---|---|
| Picture Type | Scene Picture, Scene Picture + Close-up Picture |
| Sahne Modu | Entrance and Exit Toll Gate, Underground Parking Entrance and Exit |
| Capture Type | Strobe Light Mode |
Yakalama Parametreleri 6 satır
| Görüntü Formatı | JPEG |
|---|---|
| Yakalama Çözünürlüğü | 2688 × 1520 |
| License Plate Recognition | Forward, Backward, Bidirection |
| LED Control | Supports automatic light control/time control of LEDs |
| Akıllı Tanıma | ANPR |
| Yakalanan Görüntüye Bindirme | Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type |
Görüntü 5 satır
| Ana Akış | 50 Hz: 50 fps (2688 × 1520(Default), 1920 × 1080, 1280 × 720); 60 Hz: 60 fps (2688 × 1520(Default), 1920 × 1080, 1280 × 720) |
|---|---|
| Alt Akış | 50 Hz: 50 fps (1920 × 1080(Default), 1280 × 720, 704 × 576); 60 Hz: 60 fps (1920 × 1080(Default), 1280 × 720, 704 × 576) |
| Üçüncü Akış | 50 Hz: 50 fps (1280 × 720(Default), 704 × 576); 60 Hz: 60 fps (1280 × 720(Default), 704 × 576) |
| Görüntü Ayarları | Saturation: 0 to 100; Brightness: 0 to 100; Contrast: 0 to 100; Gain: 0 to 100; 3D DNR: Off, Normal, and Expert modes are selectable.; White balance: White Balance 1 and White Balance 2 are selectable. |
| Kare Hızı | 50 fps (P)/60 fps (N) |
Giriş ve Çıkış 5 satır
| Barrier Gate Control Mode | By Camera/Platform/Mixed |
|---|---|
| Keep Boom Pole Open for Following Vehicle | Enable/Disable |
| Lock Barrier Gate for Large-Sized Vehicle | Evet |
| Barrier Gate Status | None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Barrier Gate |
| Allowlist and Blocklist | Up to 100,000 allowlist and blocklist totally |
Video 6 satır
| ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region. |
|---|---|
| Video Sıkıştırma | Main stream: H.265/H.264/MJPEG; Sub-stream: H.265/H.264/MJPEG |
| H.264 Tipi | Low profile; Medium profile; High Profile |
| Video Bit Hızı | 32 Kbps to 16 Mbps |
| Bit Hızı Tipi | Constant, Variable |
| Ölçeklenebilir Video Kodlama (SVC) | H.265 encoding |
Ağ 6 satır
| Ağ Depolama | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|---|
| Protokol | TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, IPv6, UDP, SSL/TLS, SRTP |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform |
| İstemci | iVMS-4200, Hik-Connect, Hik-Central |
| Web Tarayıcı | Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+; Local service: Chrome 41.0+, Firefox 30.0+ |
| Güvenlik | Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
Kamera 6 satır
| Maks. Çözünürlük | 2688 × 1520 |
|---|---|
| Sensör Tipi | 1/1.8" Progressive Scan GMOS（Global shutter CMOS） |
| Min. Aydınlatma | Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON); 0 Lux with IR |
| Enstantane | 1/30 s to 1/100,000 s |
| Gece/Gündüz Geçişi | Destekleniyor |
| IR Cut Filtre | IR cut filter; Blue glass module to reduce ghost phenomenon |
Arayüz 10 satır
| Trigger Input | 3-ch triggered inputs |
|---|---|
| Trigger Output | 2-ch alarm output |
| Wiegand | 1-ch, Supported: CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit |
| Alarm Girişi | 4-ch |
| RS-485 | 1-ch |
| RS-232 | 1-ch |
| Ağ Arayüzü | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Memory Card Slot | 1 TF card slot, up to 1TB |
| Röle Çıkışı | 4-ch |
| Güç Çıkışı | 12VDC, max.1A |
Akıllı Fonksiyonlar 3 satır
| LPR Accuracy | Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98.5%; Capture rate ≥99%; Driving direction accuracy rate ≥98% |
|---|---|
| ANPR Desteklenen Ülke/Bölge | 6 areas ( Asia, Africa, America, Europe, Oceania, Russian-Speaking Regions) and more than 130+ countries/regions （Statistical quantity includes baseline version and customized version.）; Asia: Hong Kong( China), Macau( China), Taiwan( China), Japan, South Korea, Mongolia, Indonesia, Myanmar, Vietnam, the Philippines, Thailand, Laos, Cambodia, Malaysia, Singapore, Pakistan, Sri Lanka, Nepal, India, Bangladesh, Qatar, Kuwait, Oman, Saudi Arabia, Bahrain, Lebanon, Jordan, Iraq, United Arab Emirat |
| Valid Distance | 1.5 to 12m |
Genel 8 satır
| Güç Kaynağı | 24VDC |
|---|---|
| Güç Tüketimi | 72W Max. |
| Paket Boyutları | 465 mm × 200 mm × 198 mm (18.31 × 7.87 × 7.80 inch) |
| Boyutlar | 195 × 150 × 673 mm (7.68 × 5.91 × 26.5 inch) |
| Ağırlık | 9.1 kg (20.06 lb.) |
| Storage Temperature and Humidity | Temperature: -30 °C to 70 °C (-4°F to 158 °F); Humidity: 95% (non-condensing) |
| Başlangıç ve Çalışma Koşulları | Temperature: -30 °C to 65 °C (-22 °F to 149 °F); Humidity: 95% (non-condensing) |
| Dil | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
External Light 2 satır
| External Light Type | IR |
|---|---|
| External Light Distance | 3-8m, 0.032W/㎡ |
Genel bakış
Hikvision DS-TMC403-EL kullanım alanları ve özellikleri.
Tüm özellikler
- Discreet monitoring enabled by low-profile presence.
- 1/1.8" progressive scan Global shutter CMOS.
- GMOS use global shutter technology guarantee superb imaging quality and high recognition rate in heavy rain or low illumination scenes.
- Efficient access control with adaptable recognition ranges.
- Up to 2688 × 1520 resolution with real-time video.
- Built-in 9 strobe lights，able to suppress vehicle headlights
- Built-in temperature and humidity sensor and self-heating glass prevent fogging.
- Open door alarm.
- Supports relay output to control vehicle barrier gate.
- Wiegand interface support access video intercom/ access control.
- Supports loop triggering, radar triggering, and video triggering.
- Supports offline control of barrier gate under allowlist mode.
- Adopts entrance and exit dedicated exposure algorithm to adapt to the front/back light and inconsistent front and rear license plates scenes to improve LPR accuracy.
- Equipped with vehicles passing detection algorithm to realize auto switch of barrier gate normally open mode during continuous vehicles passing and improve passing efficiency.
- Lasting durability against vandalism through sturdy casing.
- Electrophoretic coating and stainless steel base for corrosion resistance.
- Effortless installation utilizing ground-mounted design.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-TMC403-EL hakkında kısa yanıtlar.
DS-TMC403-EL fiyatı ne kadar?
DS-TMC403-EL için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
