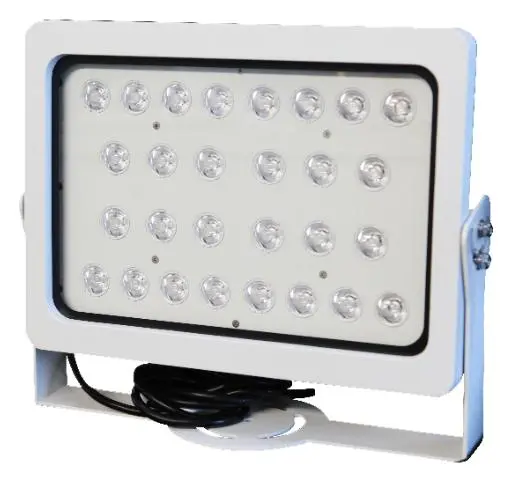

Hikvision DS-TL2002A Trafik Aydınlatma Ünitesi
Model
DS-TL2002AHikvision DS-TL2002A trafik aydınlatma ünitesi: Strobe supplement light, high beam LED light source, 28 lamp beads, Aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass, High beam LED chips with long lifespan, good stability and high luminous efficiency, Professiona.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Strobe supplement light, high beam LED light source, 28 lamp beads
- Aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass
- High beam LED chips with long lifespan, good stability and high luminous efficiency
- Professional optical design, light uniformity and distinct target spot
- High beam light design with built-in automatic light control, open at low illumination
- Support camera false triggering protection, automatic protection initiation at the abnormal triggering signal and automatic recovery
- Novelty design( small size, light weight), easy for installation and adjustment
- Water and dust resistant (IP66)
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Ek Işık 13 satır
| Light Type | White light |
|---|---|
| Angle of Light | 10° |
| Kapsama | 1 lane(s) |
| LED Lamp Beads | 28 |
| Center Illuminance | 250 lx |
| Effective Distance | 16 to 50 m |
| Trigger Manner | TTL level (switch trigger optional) |
| Trigger Level | 4 to 6 V (High level trigger) |
| Trigger Duty Ratio | 1% to 39% (Enter the protection state at Duty Radio ≥ 40%) |
| Tepki Süresi | ≤ 20 us |
| Trigger Frequency | 15 to 250 Hz |
| Service Life | ≥ 50000 Hours |
| Color Temperature | 2800 K to 3200 K |
Genel 8 satır
| Güç | AC 220 V ±20%, 0.25 A, max. 54 W, three wires |
|---|---|
| Malzeme | Aluminium alloy |
| Boyutlar | 322 mm × 271 mm × 118 mm (12.7" × 10.7" × 4.6") (L × W × H) |
| Paket Boyutları | 430 mm × 380 mm × 215 mm (16.9" × 15.0" × 18.1") (L × W × H) |
| Ağırlık | Approx. 5.1 kg (11.24 lb.) |
| Paketli Ağırlık | Approx. 6.28 kg (13.85 lb.) |
| Çalışma Koşulları | -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 10% to 90% (non-condensing) |
| Depolama Koşulları | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing) |
Onaylar 4 satır
| EMC | EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021 |
|---|---|
| Güvenlik | CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014; CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031 |
| Çevre | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Koruma | IP66: IEC 60529: 1989+A1: 1999+A2: 2013 |
Genel bakış
Hikvision DS-TL2002A kullanım alanları ve özellikleri.
Hikvision DS-TL2002A bir Trafik Aydınlatma Ünitesi modelidir.
LED Strobe Supplement Light
- Strobe supplement light, high beam LED light source, 28 lamp beads
- Aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass
- High beam LED chips with long lifespan, good stability and high luminous efficiency
- Professional optical design, light uniformity and distinct target spot
- High beam light design with built-in automatic light control, open at low illumination
- Support camera false triggering protection, automatic protection initiation at the abnormal triggering signal and automatic recovery
- Novelty design( small size, light weight), easy for installation and adjustment
- Water and dust resistant (IP66)
- Green environmental protection without harmful metal such as mercury and lead
Tüm özellikler
- Strobe supplement light, high beam LED light source, 28 lamp beads
- Aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass
- High beam LED chips with long lifespan, good stability and high luminous efficiency
- Professional optical design, light uniformity and distinct target spot
- High beam light design with built-in automatic light control, open at low illumination
- Support camera false triggering protection, automatic protection initiation at the abnormal triggering signal and automatic recovery
- Novelty design( small size, light weight), easy for installation and adjustment
- Water and dust resistant (IP66)
- Green environmental protection without harmful metal such as mercury and lead
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-TL2002A hakkında kısa yanıtlar.
DS-TL2002A fiyatı ne kadar?
DS-TL2002A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
