Hikvision

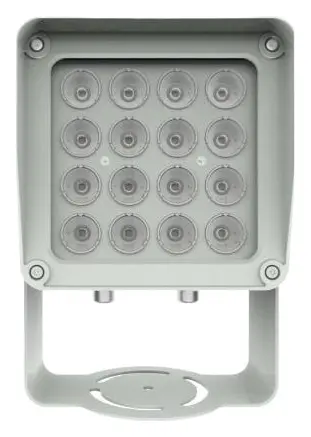

Hikvision DS-TL2000AI-L3 Trafik Aydınlatma Ünitesi
Model
DS-TL2000AI-L3Hikvision DS-TL2000AI-L3 trafik aydınlatma ünitesi: Strobe supplement light, high beam LED light source, 16 lamp beads, Aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass, High beam LED chips with long lifespan, good stability and high luminous efficiency, Professiona.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Strobe supplement light, high beam LED light source, 16 lamp beads
- Aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass
- High beam LED chips with long lifespan, good stability and high luminous efficiency
- Professional optical design, light uniformity and distinct target spot
- High beam light design with built-in automatic light control, open at low illumination
- Support camera false triggering protection, automatic protection initiation at the abnormal triggering signal and automatic recovery
- Novelty design( small size, light weight), easy for installation and adjustment
- Water and dust resistant (IP66)
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Ek Işık 14 satır
| Light Type | IR light |
|---|---|
| Angle of Light | 30° |
| IR Dalga Boyu | 850nm |
| Kapsama | 3 lane(s) |
| LED Lamp Beads | 16 |
| Center Illuminance | 150 mW/㎡ |
| Effective Distance | 16 to 25 m |
| Trigger Manner | TTL level (switch trigger optional) |
| Trigger Level | 4 to 6 V (High level trigger) |
| Trigger Duty Ratio | 1% to 39% (Enter the protection state at Duty Radio ≥ 40%) |
| Color Temperature | 2800 K to 3200 K |
| Tepki Süresi | ≤ 20 us |
| Trigger Frequency | 15 to 250 Hz |
| Service Life | ≥ 50000 Hours |
Genel 8 satır
| Güç | AC 100 V to 240 V, 0.18 A, 39.8 W, three wires |
|---|---|
| Malzeme | Aluminium alloy |
| Boyutlar | 128 mm × 216 mm × 159 mm (5.0" × 8.5" × 6.3") (L × W × H) |
| Paket Boyutları | 290 mm × 247 mm × 230 mm (11.42" × 9,72" × 9.05") (L × W × H) |
| Ağırlık | Approx. 2.8 kg (6.17 lb.) |
| Paketli Ağırlık | Approx. 3.58 kg (7.89 lb.) |
| Çalışma Koşulları | -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 10% to 90% (non-condensing) |
| Depolama Koşulları | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing) |
Onaylar 4 satır
| EMC | EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021 |
|---|---|
| Güvenlik | CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014; CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031 |
| Çevre | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Koruma | IP66: IEC 60529: 1989+A1: 1999+A2: 2013 |
Genel bakış
Hikvision DS-TL2000AI-L3 kullanım alanları ve özellikleri.
Hikvision DS-TL2000AI-L3 bir Trafik Aydınlatma Ünitesi modelidir.
IR LED Strobe Supplement Light
- Strobe supplement light, high beam LED light source, 16 lamp beads
- Aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass
- High beam LED chips with long lifespan, good stability and high luminous efficiency
- Professional optical design, light uniformity and distinct target spot
- High beam light design with built-in automatic light control, open at low illumination
- Support camera false triggering protection, automatic protection initiation at the abnormal triggering signal and automatic recovery
- Novelty design( small size, light weight), easy for installation and adjustment
- Water and dust resistant (IP66)
- Green environmental protection without harmful metal such as mercury and lead
Tüm özellikler
- Strobe supplement light, high beam LED light source, 16 lamp beads
- Aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass
- High beam LED chips with long lifespan, good stability and high luminous efficiency
- Professional optical design, light uniformity and distinct target spot
- High beam light design with built-in automatic light control, open at low illumination
- Support camera false triggering protection, automatic protection initiation at the abnormal triggering signal and automatic recovery
- Novelty design( small size, light weight), easy for installation and adjustment
- Water and dust resistant (IP66)
- Green environmental protection without harmful metal such as mercury and lead
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-TL2000AI-L3 hakkında kısa yanıtlar.
DS-TL2000AI-L3 fiyatı ne kadar?
DS-TL2000AI-L3 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
