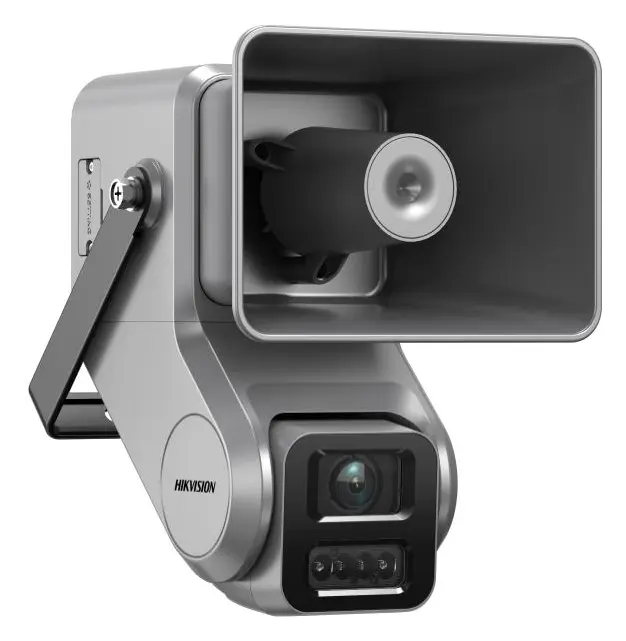

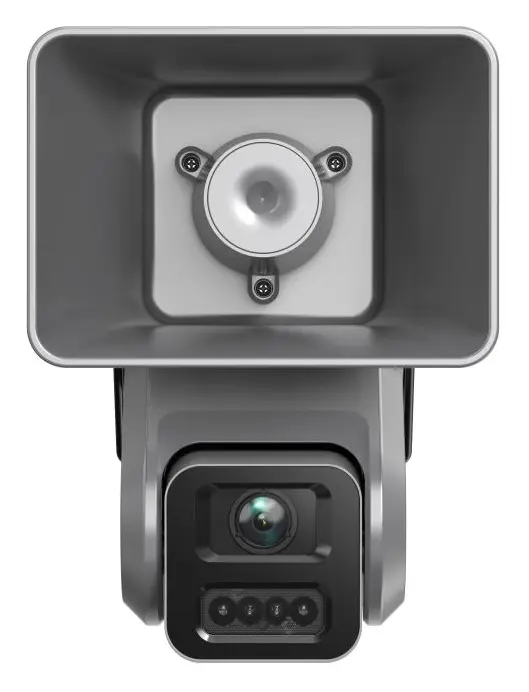

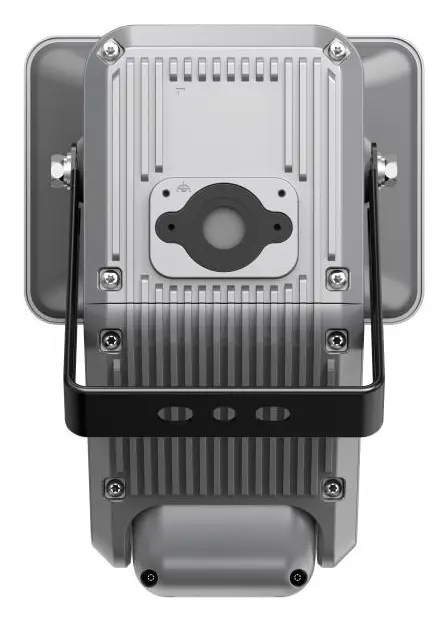

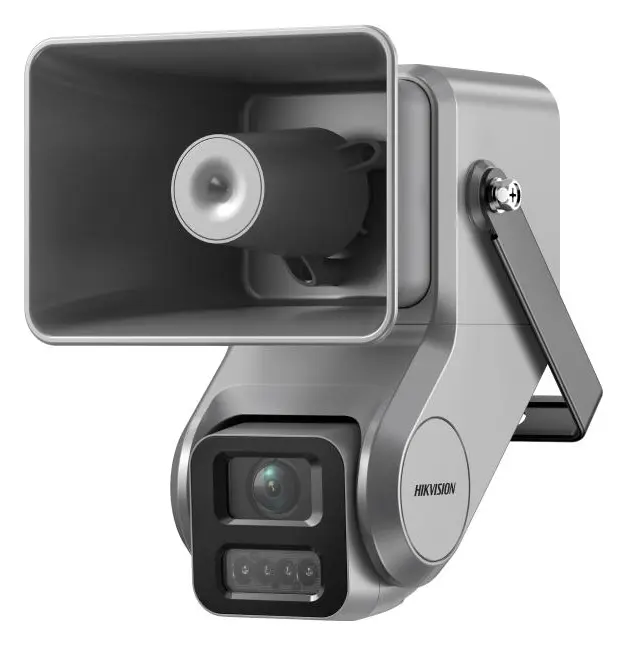

Hikvision DS-QACAM07G1-4LIZSU Hoparlör
Model
DS-QACAM07G1-4LIZSUHikvision DS-QACAM07G1-4LIZSU hoparlör: Embedded open-platform camera provides professional image effects and good image input for algorithms, Support AI perimeter protection to improve image recognition accuracy and reduce false alarms, Support functions such as wide dynamic range, backlight compen.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Embedded open-platform camera provides professional image effects and good image input for algorithms
- Support AI perimeter protection to improve image recognition accuracy and reduce false alarms
- Support functions such as wide dynamic range, backlight compensation, defog, and electronic image stabilization
- Up to 4 MP resolution, and at this resolution, it can output 25 fps/30 fps real-time image, making the image smoother
- Support two-way audio function and can be used with HikCentral Professional
- Support output of five different encoding parameter streams separately, with up to 20 concurrent streams
- Support standard MicroSD, MicroSDHC, and MicroSDXC cards, up to 512 GB
- Power supply: 12 VDC 2.125 A; PoE+: 802.3at, Type 2, Class 4
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Kamera 7 satır
| Görüntü Sensörü | 1/3" Progressive Scan CMOS |
|---|---|
| Maks. Çözünürlük | 2560 × 1440 |
| Min. Aydınlatma | Color: 0.005 Lux @(F1.6, AGC ON) Black&White: 0 Lux with IR |
| Enstantane Süresi | 1 s to 1/100,000 s |
| Gece/Gündüz | ICR |
| Açı Ayarı | Vertical: 0° to 80° |
| Adjustment Method | Manual Adjustment |
Lens 5 satır
| Görüş Açısı | Horizontal FoV: 99° to 30.4°, Vertical FoV: 52.9° to 17.2°, Diagonal FoV: 117.7° to 34.9° |
|---|---|
| Odak | Auto |
| İris Tipi | Fixed |
| Diyafram | F1.6 |
| Odak Uzaklığı | 2.8 to 12 mm |
DORI 1 satır
| DORI | Wide: D(Detect): 67.2 m, O(Observe): 26.6 m, R(Recognize): 13.44 m, I(Identify): 6.72 m; Tele: D(Detect): 204 m, O(Observe): 80.9 m, R(Recognize): 40.8 m, I(Identify): 20.4 m; The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard. |
|---|
Derin Öğrenme Fonksiyonları 2 satır
| Çevre Koruma | Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle); Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras |
|---|---|
| Metadata | Intrusion detection, line crossing detection, region entrance detection, region exiting detection |
Mikrofon 6 satır
| Tip | electret |
|---|---|
| Miktar | 2 |
| Frekans Tepkisi | 100 Hz to 20 kHz |
| Hassasiyet | -32 dBV/Pa |
| Sampling Rate | 48 kHz |
| Quantization Bits | 16 bit |
Hoparlör 7 satır
| Empedans | 8 Ω |
|---|---|
| Nominal Güç | 7 W |
| Toplam Harmonik Bozulma (THD) | 5 % |
| Hassasiyet (1 m, 1 W) | 107 dB |
| Maximum Sound Pressure Level | 115 dBSPL |
| Frekans Tepkisi | 500 Hz to 6 kHz |
| Hoparlör Ünitesi | Dome Tweeter |
Fonksiyon 2 satır
| Audio Algorithm | AEC, NS, AGC, DRC |
|---|---|
| Çift Yönlü Ses | Destekleniyor |
Ağ 7 satır
| Ağ Protokolü | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, WebSocket, WebSockets |
|---|---|
| Interface Protocol (API) | Open Network Video Interface, ISAPI, ISUP5.0 |
| Kullanıcı Yönetimi | Up to 32 users. 3 user levels: administrator, operator, and user |
| Network Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
| Ağ Depolama | Support MicroSD/MicroSDHC/MicroSDXC cards (up to 512 GB) with automatic network replenishment and local storage, NAS (NFS, SMB/CIFS), Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Tarayıcı | Plug-in required live view: IE10, IE11.; Local service: Chrome 57.0+, Firefox 52.0+.; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+ |
| İstemci | iVMS-4200, HikConnect, HikCentral Professional |
Aydınlatma 4 satır
| Aydınlatma Tipi | Hybrid (IR and White Light) |
|---|---|
| Aydınlatma Mesafesi | White Light: Up to 20 m, IR: Up to 50 m |
| Akıllı Aydınlatma | Evet |
| IR Dalga Boyu | 850 nm |
Görüntü 5 satır
| Görüntü Parametresi Geçişi | Destekleniyor |
|---|---|
| Görüntü Ayarları | Saturation, brightness, contrast, sharpness, white balance, adjustable by client software or web browser |
| Görüntü İyileştirme | BLC, HLC, 3D DNR, Defog, EIS |
| Beyaz Dengesi | Auto; Manual |
| Gece/Gündüz Geçişi | Day, Night, Auto, Schedule, Alarm Trigger |
Ses 6 satır
| Ses Örnekleme Hızı | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|---|---|
| SNR (A-Weighted) | 85 dB |
| Ses Bit Hızı | 64 Kbps（G.711ulaw/G.711alaw）/16 Kbps（G.722.1）/16 Kbps（G.726）/32~192 Kbps（MP2L2）/16~64 Kbps（AAC-LC）/8~320 Kbps（MP3） |
| Ses Sıkıştırma | G.711a/G.711u/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 |
| Ses Tipi | Mono sound |
| Ortam Gürültüsü Filtreleme | Destekleniyor |
Arayüz 7 satır
| Alarm | 1 input, 1 output |
|---|---|
| Ağ Arayüzü | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| Local Storage | 8 GB EMMC |
| Sıfırlama | 1 |
| RS-485 | 1 |
| MicroSD | Built-in MicroSD/MicroSDHC/MicroSDXC slot, up to 512 GB |
| Güç Arayüzü | 1 power input, phoenix terminal |
Olay 3 satır
| Temel Olaylar | Motion detection, video tampering alarm, alarm input, exception, video quality diagnosis, defocus detection, audio exception detection, scene change detection |
|---|---|
| Bağlantı (Linkage) | Upload to FTP/NAS/SD card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing |
| Akıllı Olaylar | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
Genel 11 satır
| Güç | PoE: 42.5 V to 57 V, 0.447 A to 0.6 A, max. 25.5W,12 VDC, 2.125 A, max. 25.5 W |
|---|---|
| Malzeme | Metal |
| Boyutlar | 338 mm × 244.9 mm × 190.1 mm (13.31” × 9.64” × 7.48”) |
| Paket Boyutları | 420 mm × 280 mm × 316 mm (16.54” × 11.02” × 12.44”) |
| Ağırlık | 3.8 kg (8.38 lb.) |
| Paketli Ağırlık | 5.07 kg (11.18 lb.) |
| Dil | English, Bulgarian, Czech, Danish, German, Greek, Spanish (European), Estonian, Persian, Finnish, French (European), Hebrew, Croatian, Hungarian, Indonesian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese (European), Portuguese (Brazilian), Romanian, Russian, Slovak, Slovenian, Serbian, Swedish, Thai, Turkish, Ukrainian, Uzbek, Vietnamese, Traditional Chinese (Taiwan) |
| Renk | Gray |
| Çalışma Sıcaklığı | -30 °C to 60 °C (-22 °F to 140 °F) |
| Çalışma Nemi | Humidity 95% or less (non-condensing) |
| Bracket Adjustment Angle | -53° to 165° |
Onaylar 4 satır
| Koruma | IP67 |
|---|---|
| EMC | Class B |
| Güvenlik | CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Çevre | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
Video 13 satır
| H.264 Tipi | BaseLine Profile/Main Profile/High Profile |
|---|---|
| H.265 Tipi | Main Profile |
| Ana Akış | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Alt Akış | 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Dördüncü Akış | 50 Hz: 25 fps（704 × 576, 640 × 480）; 60 Hz: 30 fps（704 × 480, 640 × 480） |
| Beşinci Akış | 50 Hz: 25 fps（704 × 576, 640 × 480）; 60 Hz: 30 fps（704 × 480, 640 × 480） |
| Üçüncü Akış | 50 Hz: 25 fps（1920 × 1080, 1280 × 720, 704 × 576, 640 × 480）; 60 Hz: 30 fps（1920 × 1080, 1280 × 720, 704 × 480, 640 × 480） |
| Eşzamanlı Canlı İzleme | Up to 20 Channels |
| Görüntü Bindirme | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Bit Hızı Kontrolü | CBR, VBR |
| İlgi Bölgesi (ROI) | 4 fixed regions for main stream, sub-stream, third stream, fourth stream, and fifth stream |
| Ölçeklenebilir Video Kodlama (SVC) | Destekleniyor |
| Hedef Kırpma | Destekleniyor |
Genel bakış
Hikvision DS-QACAM07G1-4LIZSU kullanım alanları ve özellikleri.
Hikvision DS-QACAM07G1-4LIZSU, Visible Horn Series ürün ailesinden bir Hoparlör modelidir.
7W Motorized 4MP Visible Horn
- Embedded open-platform camera provides professional image effects and good image input for algorithms
- Support AI perimeter protection to improve image recognition accuracy and reduce false alarms
- Support functions such as wide dynamic range, backlight compensation, defog, and electronic image stabilization
- Up to 4 MP resolution, and at this resolution, it can output 25 fps/30 fps real-time image, making the image smoother
- Support two-way audio function and can be used with HikCentral Professional
- Support output of five different encoding parameter streams separately, with up to 20 concurrent streams
- Support standard MicroSD, MicroSDHC, and MicroSDXC cards, up to 512 GB
- Power supply: 12 VDC 2.125 A; PoE+: 802.3at, Type 2, Class 4
- Built-in 7 W speaker, the outdoor loudspeaker distance can reach up to 100 m
- Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras
Nerelerde kullanılır?
Kapalı alanlarda tavan ve duvar tipi, açık alanlarda horn ve projektör tipi hoparlörler kullanılarak anons ve fon müziği alana eşit şekilde dağıtılır.
Tüm özellikler
- Embedded open-platform camera provides professional image effects and good image input for algorithms
- Support AI perimeter protection to improve image recognition accuracy and reduce false alarms
- Support functions such as wide dynamic range, backlight compensation, defog, and electronic image stabilization
- Up to 4 MP resolution, and at this resolution, it can output 25 fps/30 fps real-time image, making the image smoother
- Support two-way audio function and can be used with HikCentral Professional
- Support output of five different encoding parameter streams separately, with up to 20 concurrent streams
- Support standard MicroSD, MicroSDHC, and MicroSDXC cards, up to 512 GB
- Power supply: 12 VDC 2.125 A; PoE+: 802.3at, Type 2, Class 4
- Built-in 7 W speaker, the outdoor loudspeaker distance can reach up to 100 m
- Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras
