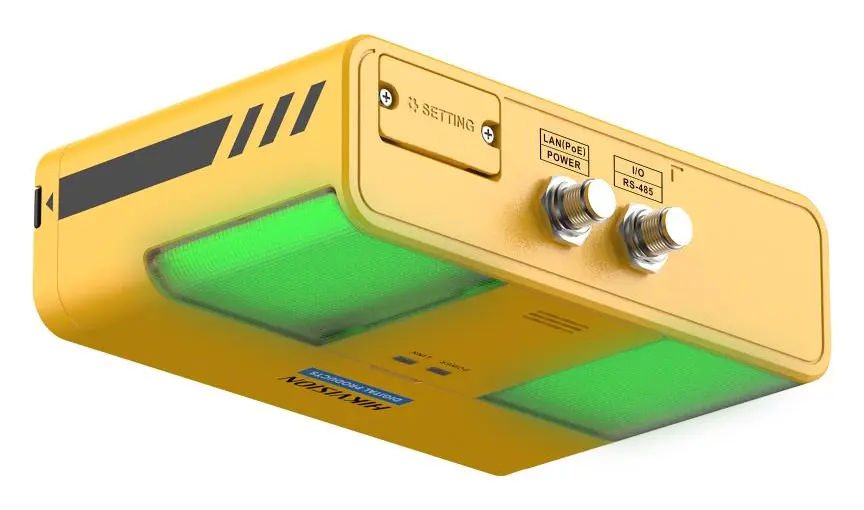

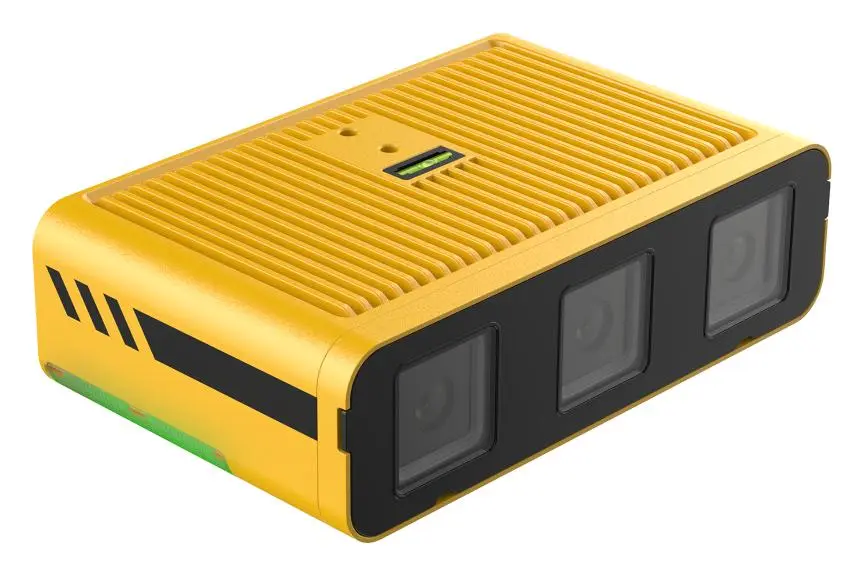

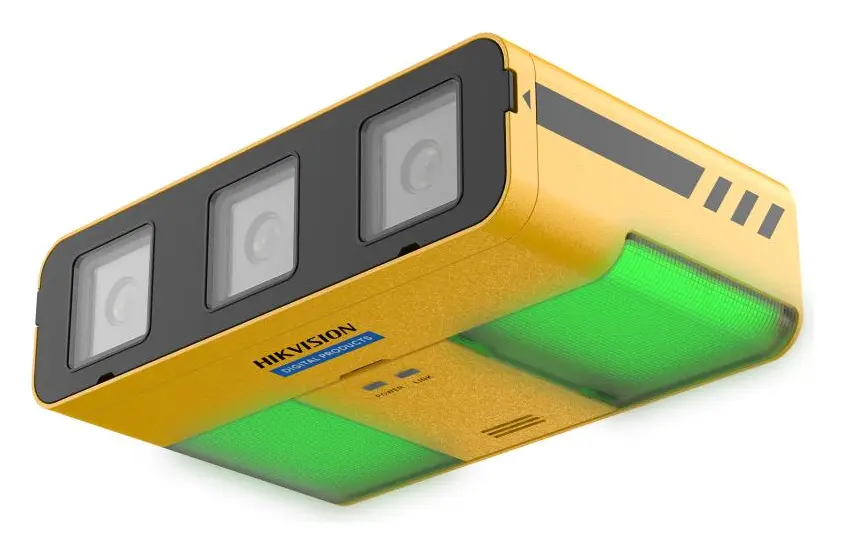

Hikvision DS-2DV6805JXB/PLD-RSG IP Kamera

Hikvision DS-2DV6805JXB/PLD-RSG, 2560 x 2160 çözünürlük, 2.8 mm sabit lens, 10 m gece görüş mesafesi ve IP67 koruma sunan bir IP Kamera modelidir.

3D Perimeter Protection Camera

• Hikvision's robotic arm anti-collision 3D vision camera features an embedded GPU module, supporting stereo vision algorithms and deep learning algorithms
• Supports a real-time frame rate of 2560 × 2160 @ 25 fps @ 50Hz, delivering smoother images
• It can independently capture and output two channels of stereo vision depth images, displaying them as pseudocolor images, and supports spatial stereo perception
• Supports person detection in robotic arm working area, and outputs the number of people detected
• With a built-in Gsensor, the device supports automatic calibration and smart calibration to acquire camera angles. It also supports angle offset alarm
• Supports detection function via alarm input signals, allowing the person detection to be enabled or disabled in conjunction with the robotic arm's operating status
• Supports setting multiple protective areas. Up to four customizable protective areas can be set
• Alarm interface: 2 inputs, 4 outputs, compatible with safety relays, PLCs, and other control devices
• The bracket that comes with the device can be installed with standard corner bracket and 40 aluminum profiles, with angle adjustment support for P-axis from -45° to 45° and T-axis from 0° to 60°
• The device complies with CE-EMC, CE-LVD and SGS-PLd certifications
• The device meets the IEC 61000-6-7:2014 standard
• The device complies with ISO 13849-1:2023 PLd performance level

Kurulum ve uyumluluk

DS-2DV6805JXB/PLD-RSG PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.
