IP Dome Kamera DeepinView

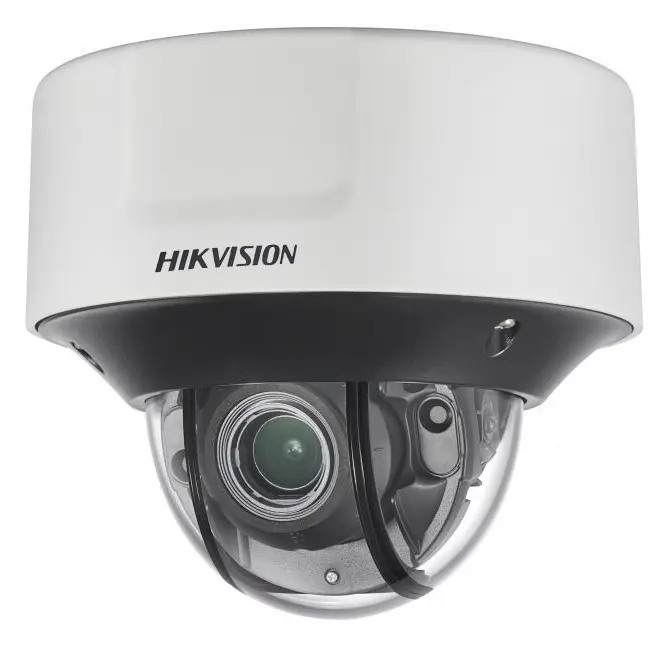

Hikvision DS-2CD7526G0-IZ(H)S 2 MP DeepinView Varifocal IP Dome Kamera

ModelDS-2CD7526G0-IZ(H)S

Hikvision DS-2CD7526G0-IZ(H)S, 2 MP çözünürlüklü, 2.8–12 mm motorize lensli bir IP dome kameradır. IR LED'leri sayesinde gece 30 metreye kadar görüş sağlar. DeepinView teknolojisiyle insan ve araç hareketlerini ayırt ederek yanlış alarmları azaltır. IP67 su ve toz koruması ve IK10 darbe dayanımı ile dış ortam kurulumlarına uygundur. Dahili mikrofonuyla sesli kayıt yapabilir.

Sinyal tipi: IP
Çözünürlük: 2 MP
Gece görüşü: IR (siyah-beyaz)
Koruma sınıfı: IP67
Lens: Motorize
Teknoloji: DeepinView, DarkFighter

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High quality imaging with 2 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light thanks to LightFighter technology
Anti-IR reflection bubble guarantees image quality
Intelligent functions based on deep learning
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor network
5 streams and up to 5 custom streams to meet a wide variety of applications

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Kamera 15 satır

Görüntü Sensörü	1/1.8ʺ Progressive Scan CMOS
Min. Aydınlatma	Color: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
Enstantane Hızı	1 s to 1/100,000 s
Yavaş Enstantane	Evet
Geniş Dinamik Aralık (WDR)	140 dB
Gece/Gündüz	IR Cut Filter.
Açı Ayarı	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Sinyal Sistemi	PAL/NTSC
Minimum Aydınlatma	Color: 0.002 Lux @ (F1.2, AGC ON); 0 Lux with IR
Lens	2.8 to 12 mm,8 to 32 mm
Lens Montajı	Integrated
Ayar Aralığı	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Gündüz/Gece	IR Cut Filter
Dijital Gürültü Azaltma	3D DNR
Odaklama	Auto, semi-auto, manual

Lens 6 satır

Odak	Auto, semi-auto, manual
Lens Tipi	Motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
Görüş Açısı	2.8 to 12 mm, horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm, horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
Diyafram	2.8 to 12 mm: F1.2 to 2.5 ,8 to 32 mm: F1.6, Constant F1.6 throughout the zoom range
Lens Yuvası	Integrated
Otomatik İris	P-iris

Aydınlatma 2 satır

IR Mesafesi	2.8 to 12 mm: up to 30 m; 8 to 32 mm: up to 50 m
Dalga Boyu	850 nm

Video 16 satır

Maks. Çözünürlük	1920 × 1080
Ana Akış	50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ;60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Video Stream	5 defined streams and up to 5 custom stream
Alt Akış	50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)
Üçüncü Akış	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Dördüncü Akış	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Beşinci Akış	50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Sıkıştırma	Main stream: H.265+/H.265/H.264+/H.264 ;Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Hızı	32 Kbps to 16 Mbps
H.264 Tipi	Baseline Profile/Main Profile/High Profile
H.265 Tipi	Main Profile
H.264+	Main stream support
H.265+	Main stream supports
Ölçeklenebilir Video Kodlama (SVC)	H.264 and H.265 encoding
İlgi Bölgesi (ROI)	Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream

Ses 4 satır

Ortam Gürültüsü Filtreleme	Evet
Ses Örnekleme Hızı	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Ses Sıkıştırma	G.711/G.722.1/G.726/MP2L2/PCM
Ses Bit Hızı	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Ağ 11 satır

Eşzamanlı Canlı İzleme	Up to 20 channels
API	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Akıcı Yayın (Smooth Streaming)	Evet
Kullanıcı/Host	Up to 32 users. 3 user levels: administrator, operator and user
Güvenlik	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
Ağ Depolama	microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR , Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
İstemci	iVMS-4200, Hik-Connect, Hik-Central
Web Tarayıcı	Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+
Alarm Tetikleme	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Sistem Uyumluluğu	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Görüntü 16 satır

Gece/Gündüz Geçişi	Day/Night/Auto/Schedule/Triggered by Alarm In
Hedef Kırpma	Evet
Görüntü Bindirme	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Görüntü İyileştirme	BLC, HLC, 3D DNR, Defog, EIS, distortion correction
Görüntü Ayarları	Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Maks. Görüntü Çözünürlüğü	1920 x 1080
Kare Hızı	50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Automatic gain control	Support
Automatic white balance	Support
BLC	Support
HLC	Support
Smart Defog	Support
EIS	Support
3D DNR	Support
Resim Bindirme	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Gündüz/Gece Geçişi	Auto/Schedule/Day/Night/Triggered by Alarm In

Arayüz 12 satır

Ses	1-ch 3.5 mm input (line in), 1-ch 3.5 mm output (line out), mono
Alarm	1 input, 1 output (max. 24 VDC/VAC, 1A)
Video Çıkışı	1Vp-p composite output (75 Ω/CVBS), only for adjustment
Dahili Depolama	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Donanım Sıfırlama	Reset via reset button on camera body, web browser and client software
İletişim Arayüzü	1 RJ45 10M/100M/1000M Ethernet port
Güç Çıkışı	12 VDC, max. 100 mA
Arayüz Tipi	Connector panel
Isıtıcı	-H: yes
Alarm Girişi	1
Alarm Çıkışı	1
Reset Butonu	Yes

Olay 3 satır

Temel Olaylar	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Akıllı Olaylar	Line crossing detection, up to 4 lines configurable , Intrusion detection, up to 4 regions configurable , Region entrance detection, up to 4 regions configurable , Region exiting detection, up to 4 regions configurable , Unattended baggage detection, up to 4 regions configurable , Object removal detection, up to 4 regions configurable , Face detection: detects faces and upload images , Scene change detection, defocus detection
Counting	Counting

Derin Öğrenme Fonksiyonları 2 satır

Yüz Yakalama	Face detection performance: detects up to 30 faces at the same time , Detectable face position: supports swing left and right from -65° to 65°, tilt up and down from -45° to 45°
Premier Protection	Line crossing, intrusion, region entrance, region exiting , Support alarm triggering by specified target types (human and vehicle) , Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.

Genel 16 satır

Bağlantı (Linkage) Yöntemi	Trigger recording: memory card, network storage, pre-record and post-record ;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email ;Trigger notification: HTTP, ISAPI, alarm output (-S), Email
Yazılım Sürümü	5.5.90
Web İstemci Dili	32 languages , English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Genel Fonksiyonlar	Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Depolama Koşulları	-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Başlangıç ve Çalışma Koşulları	-IZS: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing), -IZHS: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
Güç Kaynağı	12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3at, class 4)
Güç Tüketimi ve Akım	-IZS: With extra load: 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 Without extra load: 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 -IZHS: With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 "with extra load" means that an extra device is connected to and powered by the camera.
Kamera Boyutları	Camera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″) , With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)
Kamera Ağırlığı	Camera: 1450 g (3.2 lb.) , With package: 1950 g (4.3 lb.)
Operation Condition	-IZS: -30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing); -IZHS: -40 °C to 65 °C (-40 °F to 149 °F), humidity 95% or less (non-condensing)
Güç Tüketimi	-IZS:; With extra load: 12 VDC, 1.3 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4; Without extra load: 12 VDC, 1.1 A, max. 13 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4; -IZHS:; With extra load: 12 VDC, 1.5 A, max. 18 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4; Without extra load: 12 VDC, 1.3 A, max. 16 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4; “with extra load” means that an extra device is connected to and powered by the cam
Darbe Koruması	IK10
Hava Koşullarına Dayanıklılık	IP67
Boyutlar	Camera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″); With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)
Ağırlık	Camera: 1450 g (3.20 lb.); With package: 1950 g (4.30 lb.)

Onaylar 4 satır

EMC	47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
Güvenlik	UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Çevre	2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Koruma	Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

Özet 3 satır

Depolama	Var
Çözünürlük	2MP (1080P)
IR LED	Var

Sıkıştırma Standardı 3 satır

H.264 code profile	Baseline Profile/Main Profile/High Profile
Çift Akış	Yes
Üçlü Akış	Yes

Intelligent 2 satır

Davranış Analizi	Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle).Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag,etc.
Face Capture	Face detection performance: up to 30 faces per frame; Detectable face position:͗ supports swing left and right from -65° to 65°, tilt up and down from -45° to 45

Akıllı Özellikler 10 satır

Davranış Analizi	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Çizgi Geçiş Algılama	Cross a pre-defined virtual line
Alan İhlali Algılama	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Sahipsiz Bagaj	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Nesne Kaldırma	Objects removed from the pre-defined region, such as the exhibits on display.
İstisna Algılama	Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection
Tanıma	Face Detection
Statistics	Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)

Genel bakış

Hikvision DS-2CD7526G0-IZ(H)S kullanım alanları ve özellikleri.

Hikvision DS-2CD7526G0-IZ(H)S, 2 MP çözünürlük, 2.8–12 mm motorize varifocal lens, 30 m gece görüş mesafesi ve IK10/IP67 koruma sunan bir IP Dome Kamera modelidir. DeepinView serisi gelişmiş derin öğrenme analizleri sunar.

2 MP DeepinView Outdoor Moto Varifocal Dome Camera

High quality imaging with 2 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light thanks to LightFighter technology
Anti-IR reflection bubble guarantees image quality
Intelligent functions based on deep learning
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor network
5 streams and up to 5 custom streams to meet a wide variety of applications
6 behavior analyses, 3 exception detection, and face detection
Water and dust resistant and vandal proof (IP67 and IK10).

Nerelerde kullanılır?

Tavan montajlı yapısıyla iç mekânlarda göze batmadan geniş alan izler; kameranın hangi yöne baktığı dışarıdan kolay anlaşılmaz.

Kurulum ve uyumluluk

DS-2CD7526G0-IZ(H)S PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Tüm özellikler

High quality imaging with 2 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light thanks to LightFighter technology
Anti-IR reflection bubble guarantees image quality
Intelligent functions based on deep learning
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor network
5 streams and up to 5 custom streams to meet a wide variety of applications
6 behavior analyses, 3 exception detection, and face detection
Water and dust resistant and vandal proof (IP67 and IK10).

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Hızlı Başlangıç KılavuzuPDF · DS-2CD7526G0-IZ(H)S Firmware (V5.6.0_190428) - indirme sayfasıPDF · DS-2CD7526G0-IZ(H)S DatasheetPDF · DS-2CD7526G0-IZ(H)S

Sık sorulanlar

DS-2CD7526G0-IZ(H)S hakkında kısa yanıtlar.

DS-2CD7526G0-IZ(H)S gece görüş mesafesi kaç metre?

DS-2CD7526G0-IZ(H)S, IR aydınlatmayla yaklaşık 30 metreye kadar gece görüşü sağlar. Gerçek mesafe ortam ışığına ve yansıtıcı yüzeylere göre değişebilir.

DS-2CD7526G0-IZ(H)S dış ortamda kullanılabilir mi?

Evet. IP67 koruma sınıfı sayesinde yağmur ve toza karşı dayanıklıdır; IK10 gövdesi darbelere karşı da korumalıdır.

DS-2CD7526G0-IZ(H)S hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Hikvision NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

DS-2CD7526G0-IZ(H)S kaç megapiksel?

DS-2CD7526G0-IZ(H)S 2 MP çözünürlüğe sahiptir ve 2.8–12 mm lens kullanır.

DS-2CD7526G0-IZ(H)S fiyatı ne kadar?

DS-2CD7526G0-IZ(H)S için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
