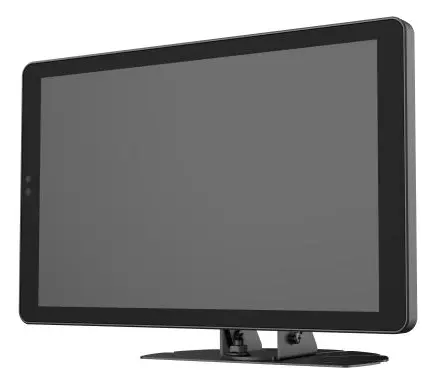

Hikvision AE-MJ1010T 10 inç Araç Monitörü

ModelAE-MJ1010T

Hikvision AE-MJ1010T, 2 MP çözünürlüklü, 36 mm lensli bir araç monitörüdır.

Sinyal tipi
HD-TVI
Çözünürlük
2 MP
Lens
36 mm
Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Distribütör garantili
81 ile sevkiyat
Teknik destek
  • Frameless integrated design, automotive-grade 10" IPS screen, 800*1280 resolution, 600 cd/m² brightness, anti-glare surface;
  • Supports installation on the central console, A-pillar. Supports both horizontal and vertical screen installation. Adopts a short cable solution for easy disassembly and replacement of the screen and surrounding faciliti
  • Supports horizontal and vertical screen display, and supports image 90° left/right rotation adjustment;
  • Supports manual screen brightness adjustment and automatic ambient light adjustment for comfortable display and energy saving;
  • Support contrast and saturation parameter adjustment. Supports cool and warm tone adjustment, low blue light mode setting, and alleviates driver's visual fatigue;
  • Convenient operation, supporting full lamination capacitive touch and remote control;
  • Standard configuration 2 channels of 1080P video input, with adaptive AHD/TVI/CVBS signal access, expand support 4 channels;
  • Supports signal trigger to switch video, trigger delay and priority can be set;

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Ekran 8 satır
Ekran Boyutu10.1inch
Çözünürlük800 (H) × 1280 (V)
Parlaklık600 cd/m²
TouchscreenSupports capacitive touch screen (full lamination)
LCD TechnologyIPS
Kontrast Oranı1000:1
Viewing Size216.58 (H) mm × 135.36 (V) mm
Yüzey İşlemiHaze 30%
Genel 6 satır
Ürün Boyutları248.36mm*157.5mm*28.68mm (without bracket)
Çalışma Sıcaklığı-20°C to +70°C (-4°F to +158°F)
Güç Tüketimi<5.5W (without the camera connected)
MontajBracket, Wall mounting
Bekleme Güç Tüketimi<0.5W
Depolama Sıcaklığı-30°C to +80°C (-22°F to +176°F)
Peripheral Device Interface 2 satır
Video-In Slot2*AHD, TVI (1080P/720P) / NTSC / PAL Adaptive
Harici Arayüz1*RS485 Interface, 1*IO Trigger
Pil 1 satır
Çalışma GerilimiDC 8-36V
Fonksiyon 3 satır
BuzzerDestekleniyor
Optical sensorDestekleniyor
Control ModeTouch and Remote control

Genel bakış

Hikvision AE-MJ1010T kullanım alanları ve özellikleri.

Hikvision AE-MJ1010T, 10 inç ekran sunan bir Araç Monitörü modelidir.

10" Vehicle HD Touch Monitor

  • Frameless integrated design, automotive-grade 10" IPS screen, 800*1280 resolution, 600 cd/m² brightness, anti-glare surface;
  • Supports installation on the central console, A-pillar. Supports both horizontal and vertical screen installation. Adopts a short cable solution for easy disassembly and replacement of the screen and surrounding facilities;
  • Supports horizontal and vertical screen display, and supports image 90° left/right rotation adjustment;
  • Supports manual screen brightness adjustment and automatic ambient light adjustment for comfortable display and energy saving;
  • Support contrast and saturation parameter adjustment. Supports cool and warm tone adjustment, low blue light mode setting, and alleviates driver's visual fatigue;
  • Convenient operation, supporting full lamination capacitive touch and remote control;
  • Standard configuration 2 channels of 1080P video input, with adaptive AHD/TVI/CVBS signal access, expand support 4 channels;
  • Supports signal trigger to switch video, trigger delay and priority can be set;
  • Supports 8-36V wide voltage input, power reverse-polarity protection, and can be paired with ACC for power-off delay function settings;

Kurulum ve uyumluluk

AE-MJ1010T koaksiyel kablo ile DVR/XVR kayıt cihazına bağlanır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Tüm özellikler

  • Frameless integrated design, automotive-grade 10" IPS screen, 800*1280 resolution, 600 cd/m² brightness, anti-glare surface;
  • Supports installation on the central console, A-pillar. Supports both horizontal and vertical screen installation. Adopts a short cable solution for easy disassembly and replacement of the screen and surrounding faciliti
  • Supports horizontal and vertical screen display, and supports image 90° left/right rotation adjustment;
  • Supports manual screen brightness adjustment and automatic ambient light adjustment for comfortable display and energy saving;
  • Support contrast and saturation parameter adjustment. Supports cool and warm tone adjustment, low blue light mode setting, and alleviates driver's visual fatigue;
  • Convenient operation, supporting full lamination capacitive touch and remote control;
  • Standard configuration 2 channels of 1080P video input, with adaptive AHD/TVI/CVBS signal access, expand support 4 channels;
  • Supports signal trigger to switch video, trigger delay and priority can be set;
  • Supports 8-36V wide voltage input, power reverse-polarity protection, and can be paired with ACC for power-off delay function settings;

Sık sorulanlar

AE-MJ1010T hakkında kısa yanıtlar.

AE-MJ1010T hangi kayıt cihazıyla çalışır?
HD-TVI destekli DVR/XVR kayıt cihazlarıyla çalışır; Hikvision XVR/DVR modelleriyle tam uyumludur.
AE-MJ1010T kaç megapiksel?
AE-MJ1010T 2 MP çözünürlüğe sahiptir ve 36 mm lens kullanır.
AE-MJ1010T cep telefonundan nasıl izlenir?
Hikvision cihazları Hik-Connect mobil uygulamasıyla izlenir. Cihaz uygulamaya eklendikten sonra canlı izleme, kayıt izleme ve bildirim alma yapılabilir.
AE-MJ1010T fiyatı ne kadar?
AE-MJ1010T için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
