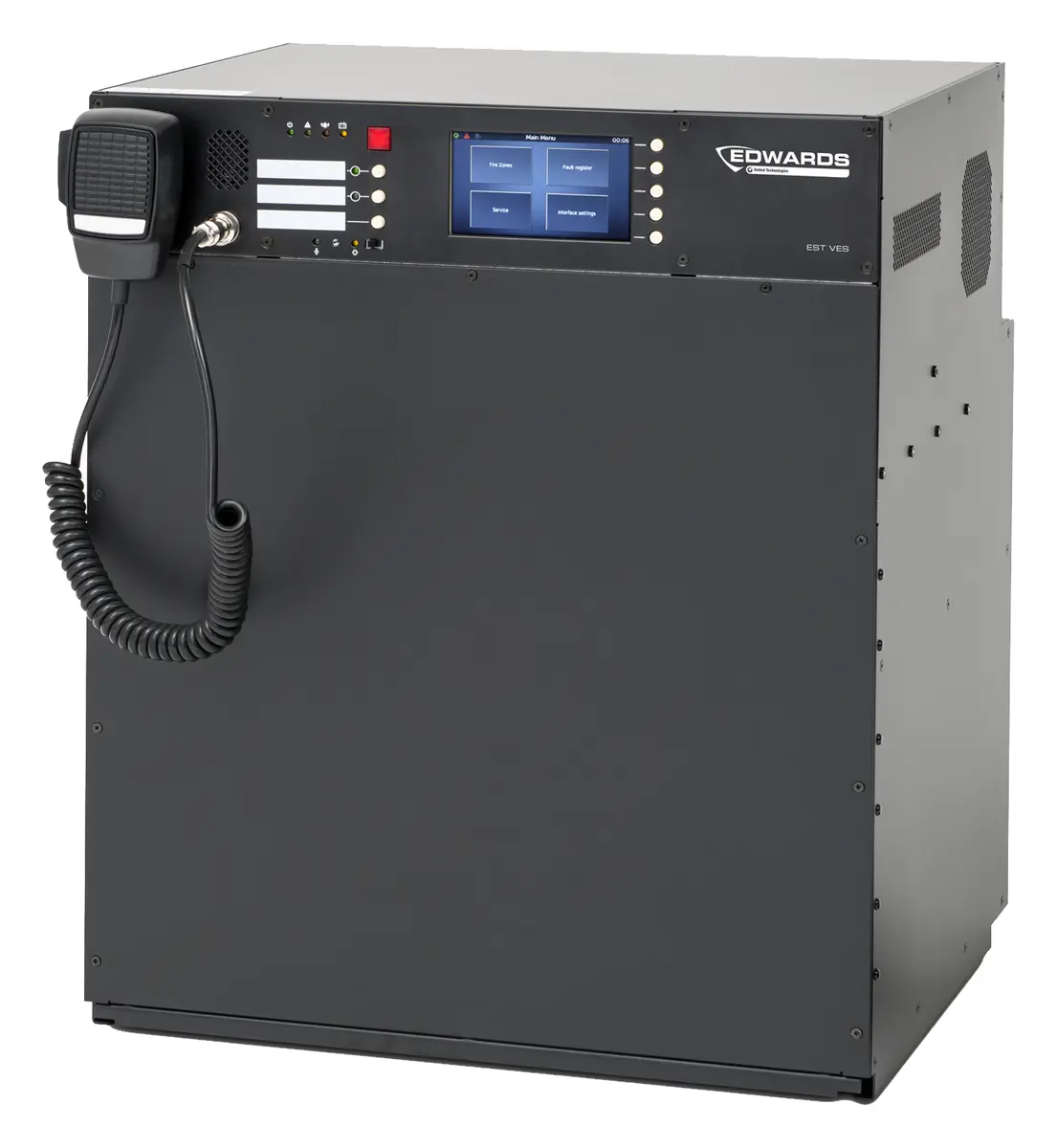

Edwards EST-VES-2001-L Acil Anons Güç Kaynağı

Edwards EST-VES-2001-L (PAVA EST Voice Evacuation System ailesi), acil anons güç kaynağı ürünüdür. EN54-4 standart/onaylarına uygundur.

Overview

EST-VES and EST-VES-8003 are scalable Public Address & Voice Alarm units suitable for multi-purpose architectures. Devices from EST-VES and EST-VES-8003 series are voice alarm compact control units containing all components within one compact housing, which meet all the requirements of EN 54-16 and EN 54-4 (certificate of constancy of performance 1438-CPR-0659).

Whole concept of the system is based on the high quality audio network distribution nodes equipped either with two independent 160 W, 320 W or three independent transformerless 500 W class D amplifiers, which distribute 100 V signals to 4, 8 or 16 speaker lines depending on the type. The system also ensures operation of a backup amplifier for the Emergency priority type of signals.

All type of centrals are equipped with integrated backup power supply and EN 54-4 compliant charging unit.

EST-VES and EST-VES-8003 are designed to be a Plug & Play device with all elements expected from Voice Evacuation Systems; including a built-in fire microphone, touchscreen for global control, DSP, programmable contact inputs and buttons, time scheduler, charger with battery mounting space and expandable memory size for messages – all fitted into IP30 chassis or dedicated 15u rack for EST-VES-8003 8003LNR with 8003R.

EST-VES and EST-VES-8003 belongs to the family of independent EVAC systems which can be networked together and extended by desktop zone microphones or fireman microphones via TCP/IP network to provide live announcements and background music inputs. The system has been designed to be wired using CAT5 cables for paging microphones and fibre-optic redundant interlink connections between the systems.

All systems support up to 45 high quality audio signals distributed over 254 devices in the network.

Öne Çıkan Özellikler

• Stand alone or TCP/IP network architecture
• All in one – independent wall mount EN 54-4 / 16 PA/VA unit
• Impedance speaker monitoring
• Remote management
• Up to 254 devices can be connected on the network (incl. fireman and zone microphones)
• Ability to connect standalone EST VES units via fiber optic / copper or both cables. Compatibility with RACK mounted modular EST ENT VES
• DSP audio processing on board
• Professional Sound Quality
• Evacuation, paging message and background music features
• Simple installation
• User friendly and intuitive programming software

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Integrated mini PA/VA unit: 2xAB (4 lines); amp 2x160W (inc. spare amp.); 1xaudio; LCD, fireman mic.; charger; w/o batteries
• Stand alone or TCP/IP network architecture
• All in one – independent wall mount EN 54-4 / 16 PA/VA unit
• Impedance speaker monitoring
• Remote management
• Up to 254 devices can be connected on the network (incl. fireman and zone microphones)
• Ability to connect standalone EST VES units via fiber optic / copper or both cables. Compatibility with RACK mounted modular EST ENT VES
• DSP audio processing on board
• Professional Sound Quality
• Evacuation, paging message and background music features
• Simple installation
• User friendly and intuitive programming software
