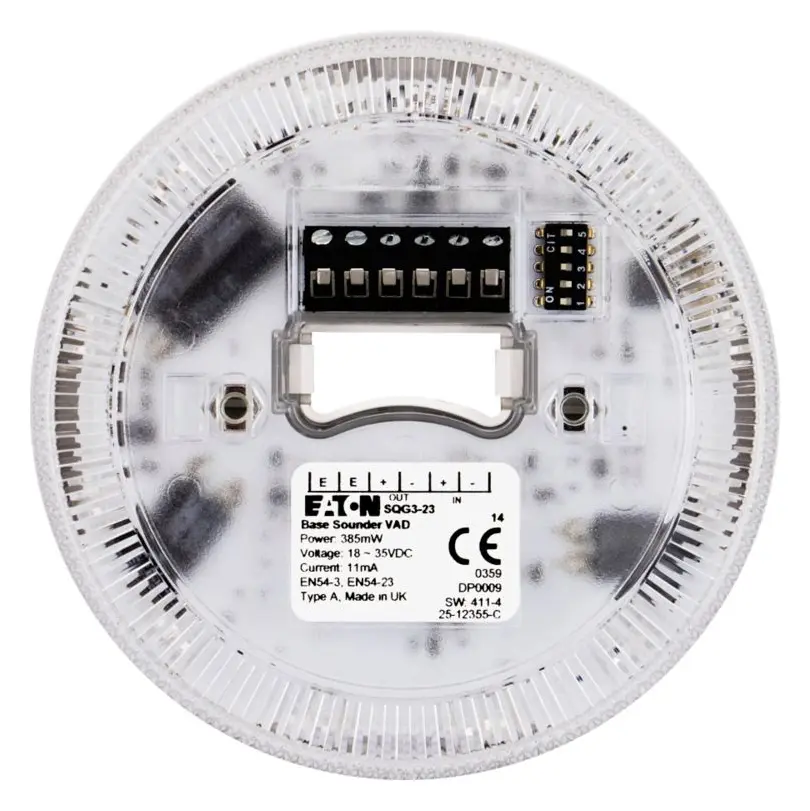

Eaton 666140FULL-1079X SQG3 Beyaz Flaş Beyaz Gövde Sirenli / Flaşörlü Dedektör Tabanı

Eaton Fulleon 666140FULL-1079X, SQG3-23 ailesine ait sirenli / flaşörlü dedektör tabanı modelidir. Öne çıkanlar: IP21 koruma sınıfı.

Eaton, Alarms & signalling devices, Fulleon, SQG3 Base sounder beacon VAD, White Flash, White housing (SQG3-23/W1/WF)

The Fulleon SQG3-23 is a combined audible and visual detector base unit (based on the Squashni platform). Offering extremely low current consumption, it provides a flexible fire safety solution to meet the detection and notification needs in a variety of applications including hotels, offices, retail outlets, education environments and warehouses. Available in two variants, as a EN54-23 certified open class visual alarm device (VAD) or as a visual indicator device (VID) approved to EN54-3. Enabling it to be used as a fire notification or supplement alerting device across Europe. Configurable as either a standalone sounder VAD / VID, the mounting surface is suitable to fit the majority of European fire detectors enabling a single installation point for three devices.

Designed with innovative technology to create high efficiency

Designed using innovative piezoelectric technology, the Squashni base sounder uses a current as low as 4mA making it a truly cost effective solution. It also issues 360 degree sound output at 90dB, ensuring that clear notification is achieved when required.

Compatible by design

By utilising piezoelectric technology, the SQG3 only consumes a low amount of power meaning it can be used widely across different industries. Not only is the SQG3 suitable for use with Eaton addressable fire systems, and BiWire systems, it can also be adapted to suit many OEM applications.

Clear visual notification during an emergency; approved to EN54-23

VADs provide a clear signal of evacuation for any occupant that may not be alerted by an audible alarm due to working in a noisy environment like a factory, if they are hard of hearing or increasingly in office and educational environments due to wearing headphones. Learn more about EN54-23 in our quick guide

One Eaton – the world’s leading manufacturer of fire notification devices

*(IHS Markit, 2018).

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
