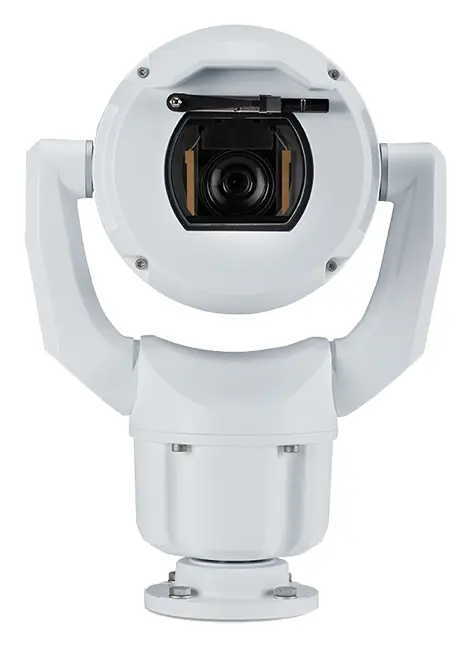

Bosch MIC-7504-Z12WR MIC IP ultra 7100i PTZ 8MP 12x IP68 gelişmiş beyaz Kamera

ModelMIC-7504-Z12WR

Bosch MIC-7504-Z12WR, 8 MP çözünürlüklü, 9.3–111.6 mm motorize lensli bir IP PTZ kameradır. IP68 su ve toz koruması ve IK10 darbe dayanımı ile dış ortam kurulumlarına uygundur.

Sinyal tipi: IP
Çözünürlük: 8 MP (4K)
Gece görüşü: IR (siyah-beyaz)
Koruma sınıfı: IP68
Lens: Motorize

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

UHD “4K” resolution (3840 x 2160 pixels) @ 30fps, 12x zoom with Optical Image Stabilization (OIS)
Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter protection, city surveillance, and mining
Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field to avoid dark spots or an over-illuminated scene

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 2 satır

Ürün Numarası	F.01U.353.586
Ürün Ailesi	MIC IP ultra 7100i

Teknik Özellikler 8 satır

Görüntü sensörü	1 in. Exmor R CMOS Sensor
Etkin piksel sayısı	5544 x 3694 (20.47 MP)
Lens	12x motorized Zoom; 9.3 mm to 111.6 mm; F2.8 to F4.5
Field of View (FOV) (with optic image stabilizer ON)	6.1° to 64.6° (6.1° to 64.5°)
Odak	Automatic with manual override
İris	Automatic with manual override
Dijital yakınlaştırma	12X
Note: digital able	Super resolution zoom is always on when zoom is

Video performance - Sensitivity 21 satır

Gain control	AGC, Fixed
Diyafram düzeltme	Horizontal and vertical
Elektronik obtüratör hızı (AES)	1/1 sec to 1/10000 sec (22 steps)
Sinyal-gürültü oranı (SNR)	>55 dB
Day/Night switch	Automatic IR cut filter
Backlight compensation (BLC)	On / Off / Intelligent Auto Exposure (IAE)
Beyaz dengesi	2000 K to 10,000 K ATW, AWB Hold, Extended ATW, Manual, Sodium Lamp Auto, Sodium Lamp
Gündüz/gece	Monochrome, Color, Auto
Defog mode feature	Improves visibility when viewing foggy or other low-contrast scenes.
Noise Reduction	Intelligent Dynamic Noise Reduction
Video performance ‑ Dynamic	range
High dynamic range (measured according to IEC 62676 Part 5)	62 dB
DORI Distance	To Object
WIDE	1X TELE 12X Scene width
Detection 121 m	1441 m 154 m
Observation 48 m	572 m 61 m
Recognition 24 m	288 m 31 m
Identification 12 m	144 m 15 m
DORI 250 pixels/m (76 pixels/ft)	Distance To Object
Standart/Video sıkıştırma	H.265, H.264 (ISO/IEC 14496), M-JPEG, JPEG
Akış	Four (4) streams: Two (2) configurable streams in H.264 or H.265 One (1) I-frames-only stream based on first stream One (1) M-JPEG Stream

Resolutions (H x V) 41 satır

Protokoller	IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), Diff-Serv (QoS), LLDP, SOAP, CHAP, digest authentication
Ethernet	10BASE-T/100BASE-TX, auto-sensing, half/ full duplex, Auto-MDI-X
Şifreleme	TLS 1.0, TLS 1.1, TLS 1.2, DES, 3DES, AES, SSL
Ethernet connector	RJ45
GOP yapısı	IP, IBP, IBBP
Overall IP Delay	30 fps: 410 ms (typical)
Interoperability	ONVIF Profile S, ONVIF Profile G, ONVIF Profile T, ONVIF Profile M
Sectors 4, 6, tors,	8, 9, 12, or 16 user-selectable, independent Seceach with 20 characters per Title
Privacy Masks 32 individually per selectable	configurable Privacy Masks; maximum 8 Pre-position; programmable with 3, 4 or 5 corners; color of Black, White, or Gray, as well as an
Sanal maskeler	24 individually configurable Virtual Masks to hide parts of the scene (background motion such as moving trees, pulsating lights, busy roads, etc.) which should not be considered for flow analysis to trigger Intelligent Tracking.
Ön ayar pozisyonları	256 Pre-positions, each with 20 characters per Title
Devriye turları	Custom Recorded Tours - two (2), total duration 30 minutes: Pre-position tour - one (1), consisting of up to 256 scenes consecutively, and one (1) customized with up to 256 user-defined scenes
Desteklenen diller	English, Czech, Dutch, French, German, Italian, Polish, Portuguese, Russian, Spanish, Japanese, Chinese
Alarm kontrolü	Rules-based logic supports basic and complex predefined user-specified commands In its most basic form, a “rule” could define which input(s) should activate which output(s).
Washer Pump Interface	Control functions integrated. Alarm/Washer Interface Unit (MIC-ALM-WAS-24, sold separately ) provides electrical interface to a washer pump device (user-supplied ).
Kamera durum izleme	Integrated sensors monitor operational status such as internal temperature, humidity level, incoming voltage level, vibration, and shock events.
Tanılama	Various status conditions are tracked in the internal diagnostic log. Critical fault conditions will also be displayed on screen.
Supported mounting options (with applicable accessories)	Direct to a surface On a wall (Conduit/cables down the wall) On the corner of a wall On a pole
Tahrik ünitesi	Brushless, integral pan/tilt motor drive
Desteklenen montaj yönü	Upright, Inverted, Canted
Yatay hareket aralığı	360° continuous rotation
Dikey açı	290° (with or without illuminator)
Dikey hareket aralığı	(With or without illuminator) Upright: -55° to +90°; Inverted: -95° to +55°; Canted: -80° to +65°
Değişken yatay hız	0.2°/second - 120°/second
Değişken dikey hız	0.2°/second - 90°/second
Speed of Intelligent Tracking	>0.2°/second (minimum)
Speed of Pre-positions	120°/second
Giriş gerilimi	24 VAC, 50/60 Hz │ High Power over Ethernet 56VDC nominal
Güç tüketimi (tipik), without illuminator	40 W
Güç tüketimi (tipik), with illuminator	70 W
Current consumption, High PoE	~1.5A
Yedekli yapılandırma	Connect both a High PoE Midspan and a separate 24 VAC power source. If either power source fails, the camera automatically switches to the other power source.
Aşırı gerilim koruması	Built-in surge protection for power, data, and network interfaces (Refer to the A&E Specifications for details.)
Accessory Interface/	RS-485, simplex, user-selectable baud rate or
Control Data	auto-baud Used to communicate with optional Alarm/washer interface box (MIC-ALM-WAS-24) or with Bosch OSRD, Pelco P/D, Forward Vision, and Cohu serial protocols.
Chassis ground	Ground wire with connector lug
Input voltage, without illuminator	RJ45 connector to 60 W High PoE Midspan (NPD-6001B) or 95 W High PoE Midspan (NPD-9501A or NPD-9501-E), or 24 VAC, 50/60 Hz; Female-to-female RJ45 coupler included
Input voltage, with illuminator	RJ45 connector to 95 W High PoE Midspan (NPD-9501A or NPD-9501-E)* or 24 VAC, 50/60 Hz; Female-to-female RJ45 coupler included
Power, Camera	24 VAC (power supply)
Video and Control	RJ45 100BASE-TX Ethernet; RS-485 half-duplex 57600 baud (dedicated for MIC-ALM-WAS-24)
* Must purchase NPD-9501A solution.	or NPD-9501-E in order to use the High PoE

Ses 36 satır

Compression	G.711, AAC, and L16 (live and recording)
Signal-to-Noise Ratio	Audio-in: 47 dBA (A-weighting)
Mode	Two-way, full duplex audio communication
User connections Line	in: 15k ohm typical, 1.0Vrms, max
Line	out: 0.8Vrms at 12K ohm, typical
Serial protocols Bosch Cohu	OSRD, Pelco P/D, Forward Vision, and
Note is	: A separate license (MVS-FCOM-PRCL) required.
Memory card slot User-supplied	full SD card (maximum 2 TB)
Recommended: ern	Industrial SD cards from West-Digital (sold by Bosch)
The customer is responsible installation complies with follow.	for making sure that the the specified stresses that
Note: Unit includes internal	heater and fan.
Ingress Protection IEC 60529	IP66 / IP68 / Type 6P (dust and immersion)
Rating/Standard when installed with a	on a MIC-DCA, or on a MIC wall mount MIC-SCA.
External Mechanical IEC 62262 Impact (IK Code / Impact rating)	IK10 (excluding glass window)
Çalışma sıcaklığı	-40 °C to +65 °C (-40 °F to +149 °F)
Soğuk başlatma sıcaklığı	-40 °C (-40 °F) (Requires 60-minute warm-up prior to PTZ operations.)
Depolama sıcaklığı	-45 °C to +70 °C (-49 °F to +158 °F)
Nem	0-100%
Wind Load Sustained	winds up to 161 kph (100 mph)
Upright its	or inverted camera with illuminator will hold position in gusts up to 241 kph (150 mph).
Canted in gusts	camera with illuminator will hold its position up to 257 km/h (160 mph).
Coefficient	of Drag:
Effective	Projected Area (EPA):
Titreşim	IEC 60068-2-6: 10-150 Hz, 1.0G (0.5G on canted unit), 10m/s², 20 Sweeps NEMA TS-2 Section 2.2.8: 5-30 Hz, 0.5G MIL-STD-167-1A
Darbe Dayanımı	IEC 60068-2-27, Test Ea: Shock, half sine impulse, 6 ms, 45 G (20G on canted unit), non-repetitive shocks (three shocks in each axis and in each direction) NEMA TS 2 Section 2.2.9 Shock (Impact) Test Half sine wave 11 ms, 10G
MIL-STD-810 Military	MIL-STD-810-G, 501.5 High Temperature; MIL-
Standard Test Methods	STD-810-G, 502.5 Low Temperature; MIL-STD-810-G, 503.5 Temperature Shock; MIL-STD-810-G, 505.5 Solar Radiation; MIL-STD-810-G, 506.5 Rain; MIL-STD-810-G, 509.5 Salt Fog; MIL-STD-810-G, 510.5 Sand and Dust
Salt Mist Spray (Corrosion Test)	ISO 12944-6: C5-M (High); Aluminum Housing Components
Ağırlık	8.7 Kg (19.2 lb)
Pencere	Flat glass with defroster Defroster starts automatically at
Yapı malzemesi	Anodized cast aluminum
Window Wiper	Integrated, long-life silicone wiper
Sunshield (to prevent sun load in hot climates)	Optional (sold separately)
Canting	On-site canting functionality
Renk	White (RAL 9010)
Standard Finish	Corrosion-resistant, powder coat paint, sand finish

Temel Özellikler 20 satır

Ağırlık (kg)	8.70 kg
Depolama sıcaklığı (°C)	-45 – 70 °C
Ethernet tipi	10/100BASE-TX; Auto-sensing; Full / half duplex
Etkin piksel sayısı (Y x D)	5544 x 3694
Giriş gerilimi (VAC)	21 – 30 VAC
İris kontrolü	Otomatik (manuel kumanda üstünlüğü ile)
Kamera işlevleri	Intelligent dynamic noise reduction; Intelligent Defog
Lens diyaframı (/F)	2.80 – 4.50 /F
Lens odak uzaklığı (mm)	9.30 – 111.60 mm
Lens yaklaşımı(x)	12 x
Malzeme	Anodize döküm alüminyum
Protokoller/standartlar	IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); 802.1x, EAP/TLS; DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); LLDP; SOAP; CHAP; Digest authentication
Renkli	Beyaz
Renkli (lüks)	0.2920 lx
Sensör tipi	1 inch CMOS
Siyah-beyaz (lüks)	0.0110 lx
Video sıkıştırma	H.264 (ISO/IEC 14496-10); M-JPEG; JPEG; H.265/HEVC
Yatay hareket aralığı (°)	0° - 360° sürekli
Çalışma sıcaklığı (°C)	-40 – 65 °C
Ön konum doğruluğu (ortalama) (°)	0.05 °

Genel bakış

Bosch MIC-7504-Z12WR kullanım alanları ve özellikleri.

Bosch MIC IP ultra 7100i serisi MIC-7504-Z12WR PTZ 8MP 12x IP68 gelişmiş beyaz (PTZ Kamera). Lens odak uzaklığı: 9.30 – 111.60 mm.

Öne Çıkan Özellikler

UHD “4K” resolution (3840 x 2160 pixels) @ 30fps, 12x zoom with Optical Image Stabilization (OIS)
Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter protection, city surveillance, and mining
Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field to avoid dark spots or an over-illuminated scene

Kutu İçeriği

1 x MIC IP ultra 7100i camera
1 x spanner tool [to remove and to attach the yoke caps in order to cant the camera if desired, and to remove the access plug from the camera head when installing the optional illuminator accessory (sold separately)]
1 x base gasket
1 x RJ45 coupler
1 x MAC address labels
1 x Quick Installation Guide
1 x Safety instructions

Nerelerde kullanılır?

Otopark, site ortak alanı, fabrika sahası ve meydan gibi geniş alanlarda tek kamerayla devriye, yakınlaştırma ve otomatik takip için kullanılır.

Kurulum ve uyumluluk

MIC-7504-Z12WR PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Veri Sayfası (Datasheet)PDF · MIC-7504-Z12WR Kurulum KılavuzuPDF · MIC-7504-Z12WR Hızlı Kurulum Kılavuzu - TürkçePDF · MIC-7504-Z12WR Kullanım KılavuzuPDF · MIC-7504-Z12WR Yapılandırma KılavuzuPDF · MIC-7504-Z12WR

Sık sorulanlar

MIC-7504-Z12WR hakkında kısa yanıtlar.

MIC-7504-Z12WR dış ortamda kullanılabilir mi?

Evet. IP68 koruma sınıfı sayesinde yağmur ve toza karşı dayanıklıdır; IK10 gövdesi darbelere karşı da korumalıdır.

MIC-7504-Z12WR hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Bosch NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

MIC-7504-Z12WR kaç megapiksel?

MIC-7504-Z12WR 8 MP çözünürlüğe sahiptir ve 9.3–111.6 mm lens kullanır.

MIC-7504-Z12WR fiyatı ne kadar?

MIC-7504-Z12WR için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
