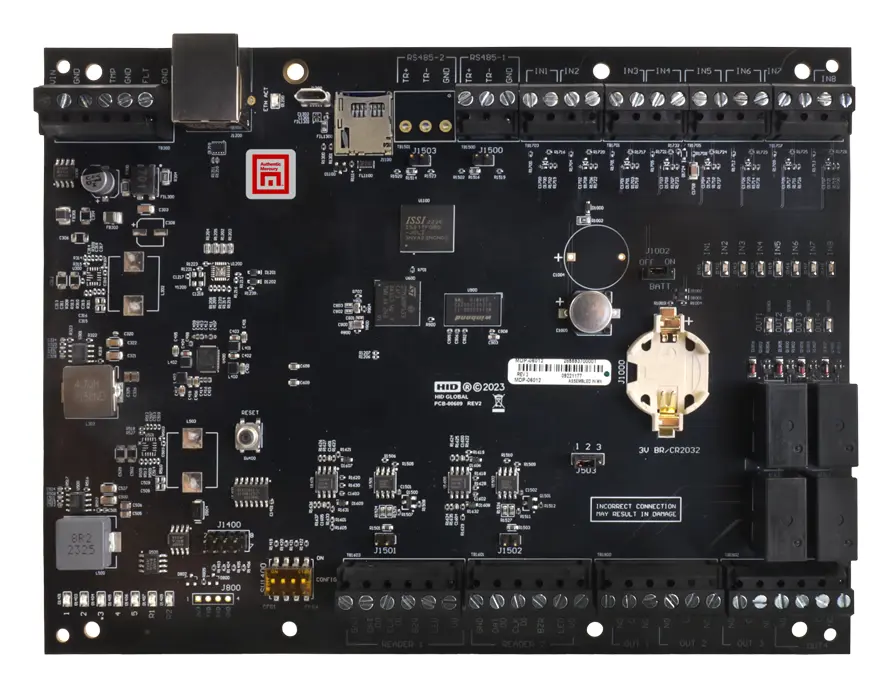

Avigilon AC-MER-CONT-MP1502 Geçiş Kontrol Paneli

ModelAC-MER-CONT-MP1502

Avigilon AC-MER-CONT-MP1502 geçiş kontrol paneli: Browser-based to manage anytime, anywhere, Automate responses with global actions, Security tailored to what you need most, End-to-end Motorola Solutions ecosystem, Build end-to-end responses.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Browser-based to manage anytime, anywhere
Automate responses with global actions
Security tailored to what you need most
End-to-end Motorola Solutions ecosystem
Build end-to-end responses
Invest in a secure future
See door events in one place
Simplify your security install

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 12 satır

Parça Numarası	AC-MER-CONT-MP1502
Ürün Ailesi	Mercury MP Intelligent Controller
Açıklama	Avigilon Alta - MP1502 Intelligent Controller
Geçiş Kontrolü	Supports total of 1 RS-485 IO protocol Activation/deactivation If/Then rule capabilities
Primary Power	12 to 24 VDC ± 10 %, 500 mA maximum (reader and USB ports not included)
Reader Port	600 mA maximum (add 600 mA to primary power current)
Micro USB Port	5 VDC, 500 mA maximum (add 270 mA to primary power current)
Battery	Memory/Clock Backup: Super Capacitor (10 days). 3 Volt Lithium, type BR2330 or CR2330 slot available for additional capacity. (CR2330 battery not included)
Host Communication	Ethernet: 10-BaseT/100Base-TX and USB port (2.0) with optional adapter: pluggable model USB2- OTGE100
Serial I/O Device	2-wire RS-485, 2,400 to 115,200 bps, asynchronous, half-duplex, 1 start bit, 8 data bits, and 1 stop bit
Girişler	8 unsupervised/supervised, standard EOL: 1k/1k ohm, 1%, ¼ watt 2 unsupervised dedicated for cabinet tamper and UPS fault monitoring
Output Relays	4 relays, Form C; NO 5 A @ 30 VDC resistive; NC 3 A @ 30 VDC resistive

Okuyucu Arayüzü 5 satır

Reader Power	12-24 VDC +/- 10% regulated, 600 mA maximum
Data Inputs	TTL compatible or 2-wire RS-485
RS-485 Mode	9,600 to 115,200 bps, asynchronous, half-duplex, 1 start bit, 8 data bits, and 1 stop bit Maximum cable length: 2000 ft. (609.6 m)
LED Output	TTL levels, high>3 V, low
Buzzer Output	Open collector, 12 VDC open circuit maximum, 40 mA sink maximum

Kablo Gereksinimleri 6 satır

Power and Relays	1 twisted pair, 18 to 16 AWG
Ethernet	CAT-5, minimum
Reader TTL	6-conductor, 18 AWG, 500 ft. (152 m) maximum
Reader RS-485	1 twisted pair, shielded, 120 ohm impedance, 24 AWG, 2,000 ft. (610 m) max.
I/O Devices	RS-485 1 twisted pair with drain wire and shield, 120 ohm impedance, 24 AWG, 4,000 ft. (1,219 m) maximum
Alarm Input	1 twisted pair, 30 ohms maximum typically 22 AWG @ 1000 ft. (304.8 m) maximum

Çevresel 2 satır

Sıcaklık	Storage: -55° to 85° C Operating: 0° to 70° C
Nem	5 to 95% RHNC

Mekanik 2 satır

Boyutlar	8 in. (203.2 mm) W x 6 in. (152.4 mm) L x 1 in. (25 mm) H
Ağırlık	9 oz. (255 g) nominal, board only

Uyumluluk ve Garanti 1 satır

Product Compliance	UL 294 Recognized, FCC Part 15 Class A, CE Compliant, RoHS (2011/65/EU & 2015/863), EU REACH (1907/2006), California Proposition 65, NIST Certified Encryption (in process)

Genel bakış

Avigilon AC-MER-CONT-MP1502 kullanım alanları ve özellikleri.

Secure spaces smarter with Avigilon & Mercury, where powerful access meets top-tier reliability with integrated, end-to-end security.

Build end-to-end responses: Have a door event send alerts to your team’s radios with Orchestrate.
Invest in a secure future: Grow with confidence, and connect the pieces today for a safer tomorrow.
See door events in one place: View what’s happening at your door from anywhere with video integrations.
Simplify your security install: Avigilon hardware connects to Mercury controllers wirelessly for seamless deployments.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet – Avigilon Alta - MP1502 Intelligent Controller Datasheet - EnglishPDF · AC-MER-CONT-MP1502

Sık sorulanlar

AC-MER-CONT-MP1502 hakkında kısa yanıtlar.

AC-MER-CONT-MP1502 fiyatı ne kadar?

AC-MER-CONT-MP1502 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
