Ajax DoorProtect U Jeweller Kablosuz Manyetik Kontak

Guardian for doors, windows, and valuables

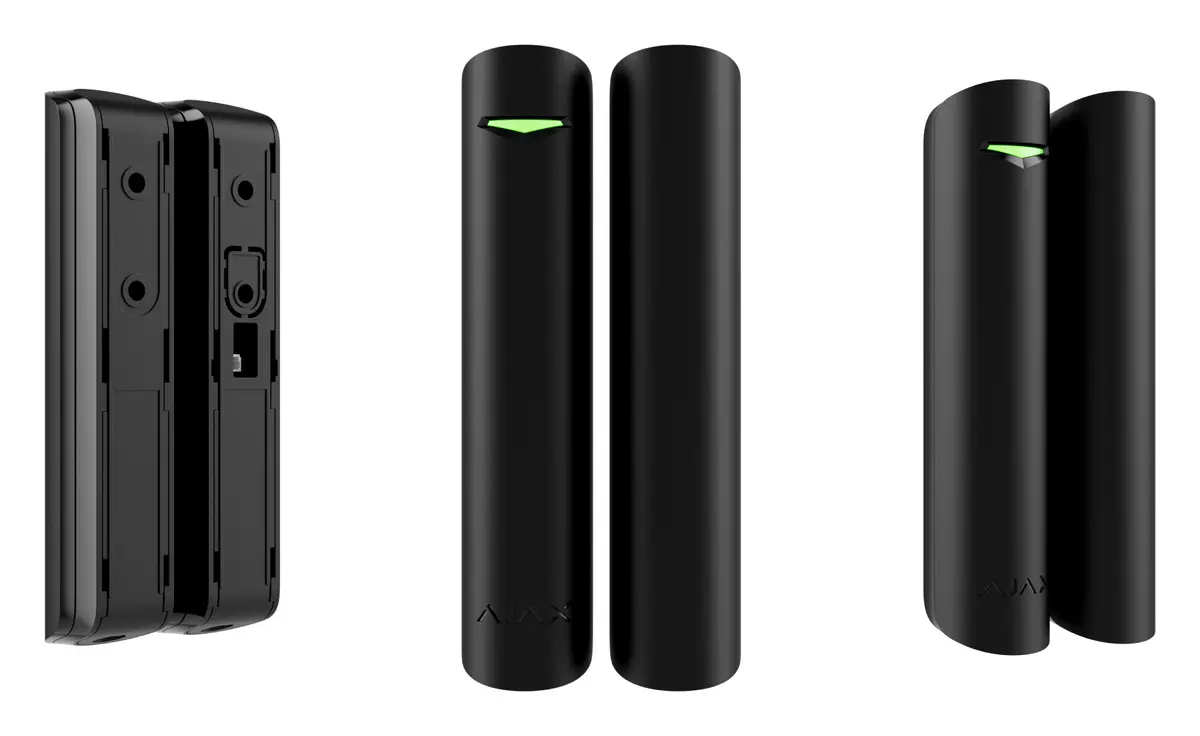

DoorProtect U Jeweller is a version of Ajax’s well-known opening detector, refined to meet the strict UK standards. It delivers reliable protection wherever break-ins may occur — whether it’s doors, windows, or safes holding valuables. Its dual reed switches ensure accurate detection of unauthorized openings, while the anti-chatter technology minimizes false alarms. Two magnets of different sizes allow for adapting the detector installation to various door and window designs.

Flexible mounting with two reed switches

DoorProtect U Jeweller uses two reed switches for trouble-free opening detection. This design offers more versatile mounting for different installation needs: the magnet can be positioned on either the left or right side of the detector. The reed switches are housed in durable plastic capsules, which ensures their integrity during transportation or accidental drops. For the optimal setup, installers can choose between a larger or a smaller magnet, both included in the kit.

Enhanced security with additional detectors

DoorProtect U Jeweller features a connector for a third-party device with an NC contact. Installers can use it to add an existing or a new wired opening, motion, or vibration detector to an Ajax system. This integration streamlines monitoring over the both detectors within a single Ajax app interface.

Wire-free flexibility and reliable performance

DoorProtect U Jeweller operates wirelessly, providing maximum flexibility during installation. The pre-installed battery from trusted manufacturers ensures a hassle-free setup, requiring no extra steps for the device to begin operation. Each battery is thoroughly tested during production, and Ajax Systems inspects every unit to guarantee reliable performance. The battery can be easily replaced after approximately seven years of autonomous operation. Its status is always visible in Ajax apps. Users and security companies receive low battery notifications months in advance, so the replacement is always well-timed.

Unique wireless technology

Jeweller is Ajax’s proprietary radio protocol for secure two-way communication. It provides a block encryption and device authentication during each communication session with Ajax hub or radio signal range extender. Jeweller prevents sabotage, spoofing, and data theft.

Communication through steel and concrete

Some facilities have thick walls, metal partitions, or sheer distances that affect signal quality. Ajax range extenders are designed to increase the range of a wireless network and deliver stable connection with a hub despite the obstacles. And by choosing the model with an Ethernet cable connector, you get an additional communication channel. А single system can accommodate up to five range extenders.

System supervision

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, including tamper, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

Sabotage protection

The bundled holding screw ensures a more reliable fastening and complicates unauthorized device dismantling. The tamper button alerts the monitoring company and users if the device is detached from the mounting panel or removed from the surface.

All stored and transmitted data in the system is protected by block encryption with a dynamic key. Encryption makes it extremely difficult to reprogram the device and replace or steal the data.

Effortless installation and setup

DoorProtect U Jeweller is ready to operate straight out of the box. It is easy to install with the SmartBracket mounting panel — no need to disassemble the enclosure. Ajax apps help quickly make the device a part of the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigured remotely without the need for on-site visits.

Nerelerde kullanılır?

Kapı, pencere ve iç mekân hareketlerini algılayarak alarm paneline bildirir; izinsiz girişi henüz başlangıç aşamasında fark etmeyi sağlar.

Kurulum ve uyumluluk

DoorProtect U Jeweller, Ajax Hub serisi merkez ünitelerle çalışır ve Ajax uygulamasından QR kodla sisteme eklenir.

Tüm özellikler

• Protection against contact chatter to prevent false alarms
• Remote control and configuration
• Connector for a third-party NC detector
• Informative push notifications
• Jeweller radio communication
• Hassle-free installation
• Device compatibility
• Two reed switches
• Two magnets of different sizes
• Pre-installed battery
